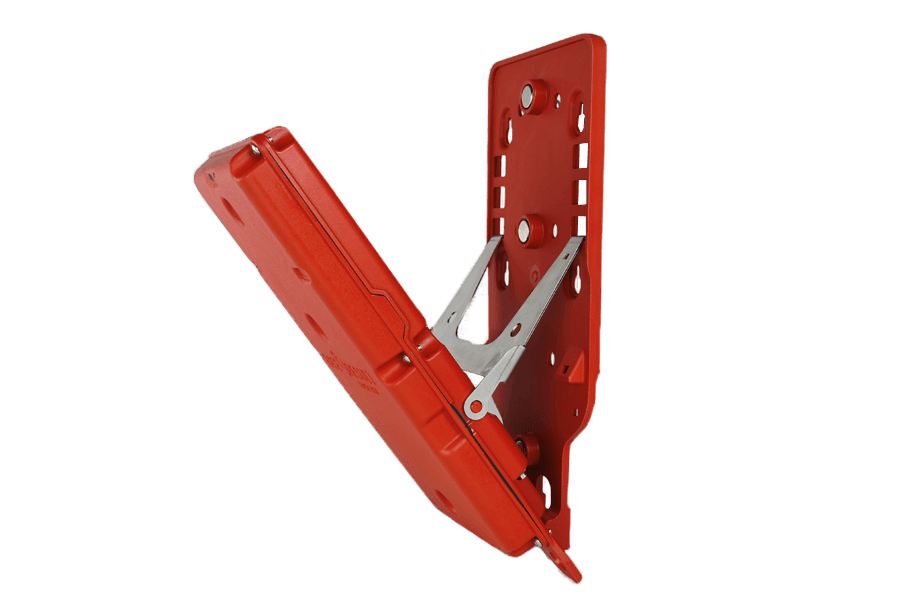

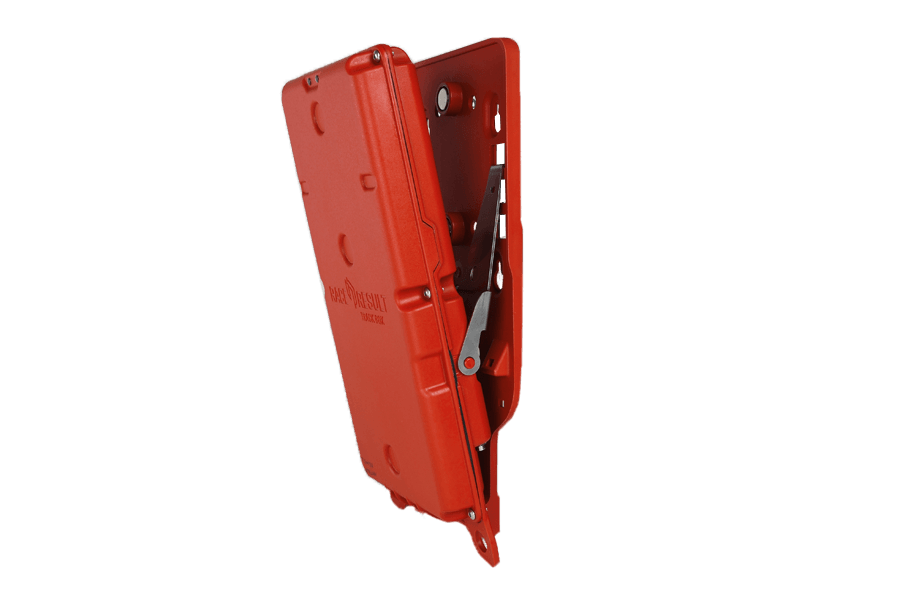

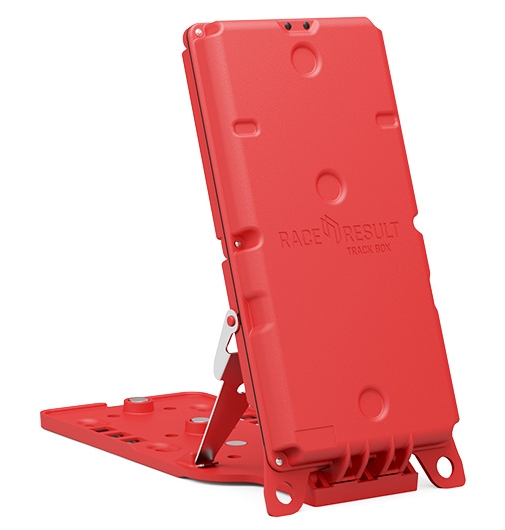

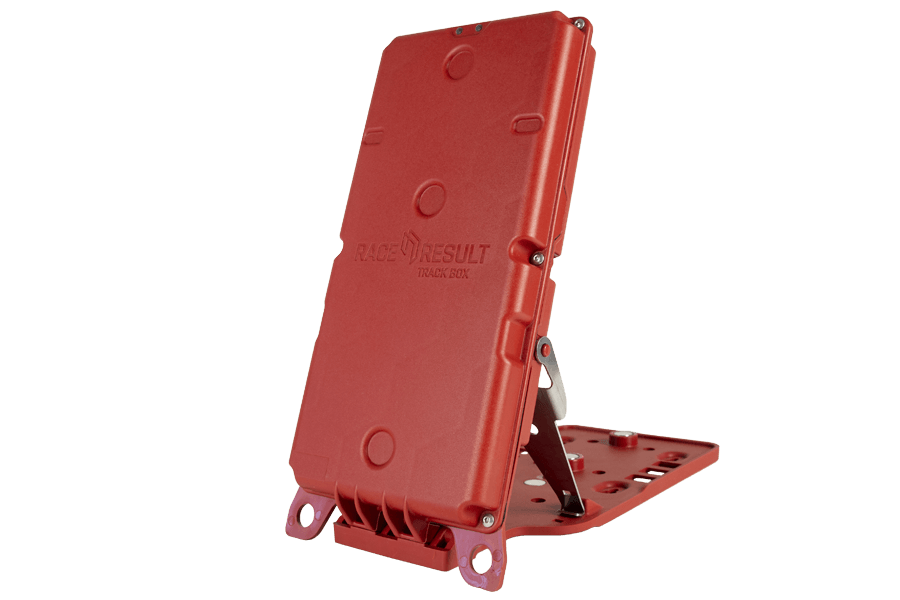

The Track Box Passive allows UHF transponder timing with only one small device. The hands-free solution is easy to carry, super fast in setup and managed remotely. With UHF reader, GPS and battery integrated, it is the ideal device for split points, remote timing locations and advanced race visualization.
|Track Box Passive :: Complete Beginner's Guide|
|Track Box Passive :: Connecting Solar Panels|
|Track Box Passive :: Introduction|

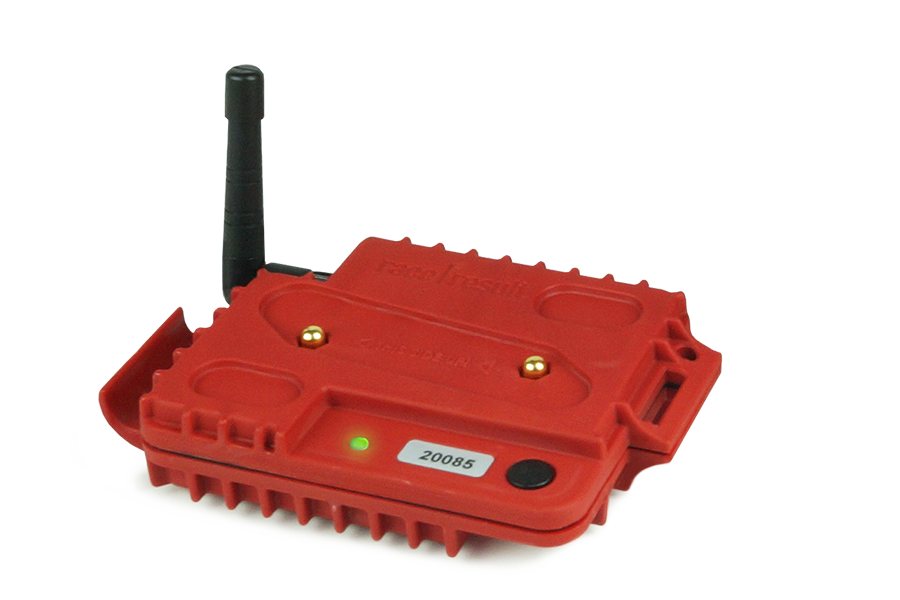

With the Track Box, you can provide tracking and timing with the same transponder. Track Boxes placed along the course or on race vehicles receive pings from all tracking-enabled transponders within a 50 m radius and transmit the data live online. You can then use this data to produce live tracking visualisation, and to publish an unprecedented amount of splits.

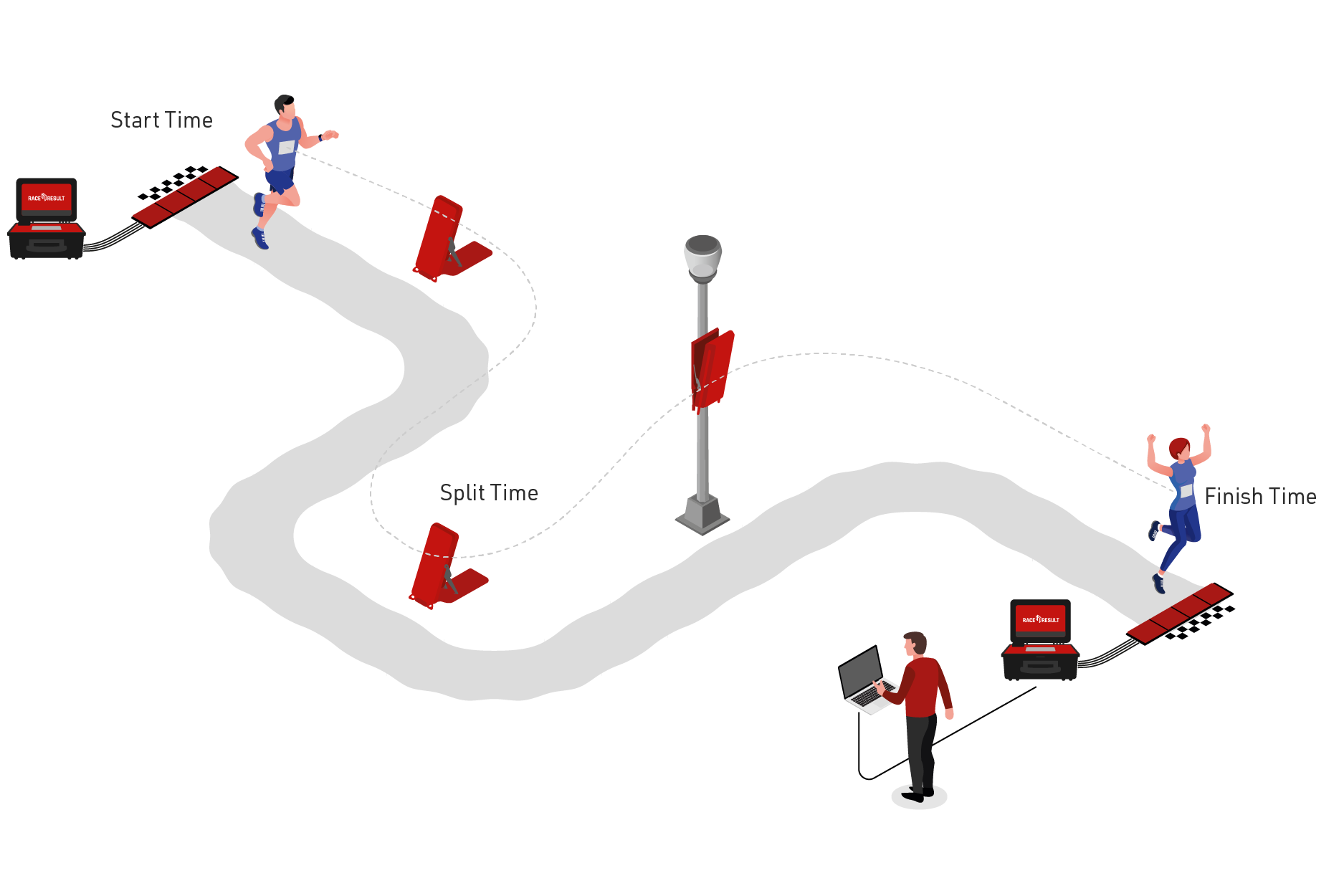

With Tracking Mode activated, the ActivePro V3 sends out pings. RACE RESULT Track Boxes receive these signals and transmit them via mobile network to the timing server. This allows for better athlete tracking without the need for additional tracking devices. The Track Box is also the easiest way to set up split points in remote places.
|Safety & conditions Track Box|
|Temperature||-20°C to 70°C|
|Dimensions / weight||165 x 102 x 32 mm / 400 g|
|Internal GPS||Qualcomm gpsOne Gen8 with GLONASS|
|Internal 3G||7 band 3G + quadband GPRSStandard SIM-Card|
|Battery type||LiPo, 4,000 mAh, 3.7 V|
|Charge current||230mA at 15V (full in 5h) 150mA at 12V (full in 10h)|
|Battery life||Moving: 1 day Stationary: 3-5 days|
|2.4 GHz RF specification|
|Transponder 2.4GHz channel frequencies (worldwide compliance)||1: 2.480 MHz 2: 2.405 MHz 3: 2.425 MHz 4: 2.475 MHz 5: 2.415 MHz 6: 2.460 MHz 7: 2.435 MHz 8: 2.450 MHz|
|2.4 GHz TX Power||3,5 dBm|
|Internal Data Buffer||10,000 trackping records|
|Read Range||50 m - 150 m|

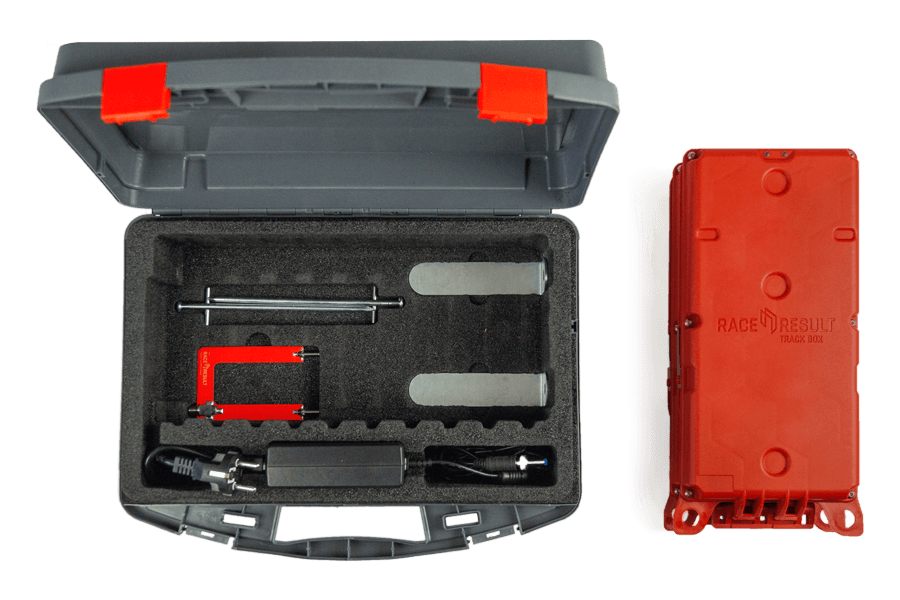

|10 Track Boxes Pack|
|Content||Foam-padded suitcase with shoulder strap 10 Track Boxes Track Box charge adapter 15 V AC adaptor with universal power inlet Mains power lead|
|Dimensions / weight||390 x 300 x 135 mm / 5.5 kg|
