Solution for
Tracking and timing with one chip
The RACE RESULT Active System turns tracking upside down. The tracking feature built in the RACE RESULT Active Transponders takes a new approach to tracking, offering major improvements compared to traditional tracking solutions.
- No additional device
No need to carry a bulky GPS tracker or a smartphone, all the athletes need is the exact same timing chip that they would be wearing anyway. - Less infrastructure
You only need SIM cards for the Track Boxes, not for each participant. You can then easily track thousands of participants without overloading the cell network. - More timing data
The tracking data collected is much more precise than with any other solution. You can use it to publish an unprecedented number of splits.
Setup

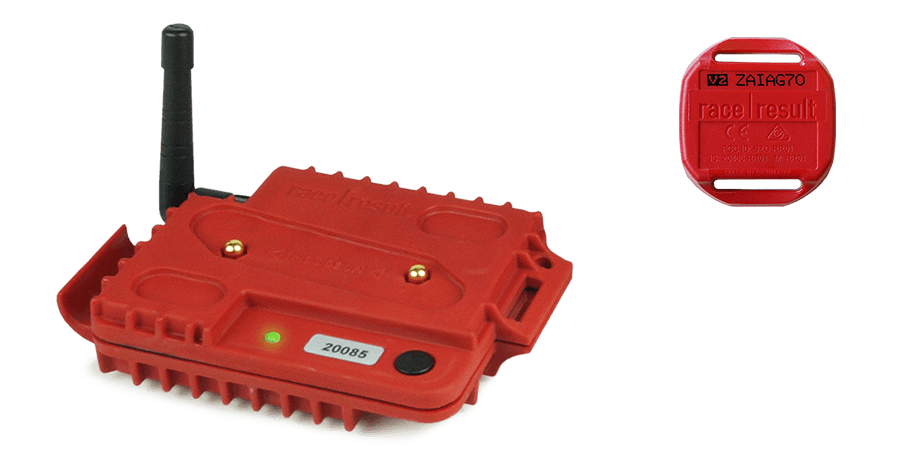

Our tracking solution requires two components:
 |
Active Pro V3 transponder When tracking is activated, the transponder emits a trackping every second. (The Active Pro is simply a timing chip, it does not have any GPS component.) |
 |
Track Box
The Track Box collects trackpings from transponders in a radius of 50 m. Thanks to its built-in GPS and 4G/LTE modules, it transmits its position and the position of the transponders around to the server. |
The data collected by the Track Box can then be used for tracking visualisation, and for timing at relevant locations.
Equipment
Track Box Active
Provide tracking and timing with the same active transponder. Track Boxes placed along the course or on race vehicles receive pings from all tracking-enabled transponders within a 50 m radius and transmit the data live online.
ActivePro V3 Transponder
The most powerful active transponder on the market. With an outstanding accuracy of 0.004 seconds at speeds of up to 120 km/h, it is the ideal choice for most events. The guaranteed battery life of 5 years ensures reliable operation. Thanks to Tracking Mode and Store Mode, numerous split times can be recorded with minimal setup – unique in its class.
Ubidium
The cutting-edge timing system designed for superior performance and versatility. Boasts exceptional weatherproofing, lightweight design, and up to 32 hours battery life. Data is transmitted in real-time through multiple options, including SIM, Ethernet, POE, or USB-C connections.What you can achieve
The RACE RESULT tracking solution was successfuly used on the Isklar Norseman Extreme Triathlon, one of the toughest endurance events on the planet.
Thanks to the Track Box, the 3-strong timing crew was able to cover 25 timing points, spread on a 200 km point-to-point course.
This video shows how the timing and tracking equipment was set up.
You can also:
We embedded a video from a third party (www.youtube.com) here.
By showing the external content you
accept YouTube's terms and conditions.
All round a sophisticated system
The battery life of the active transponder lasts for over 1,000 hours of tracking - that's enough for 100 Ironman events.

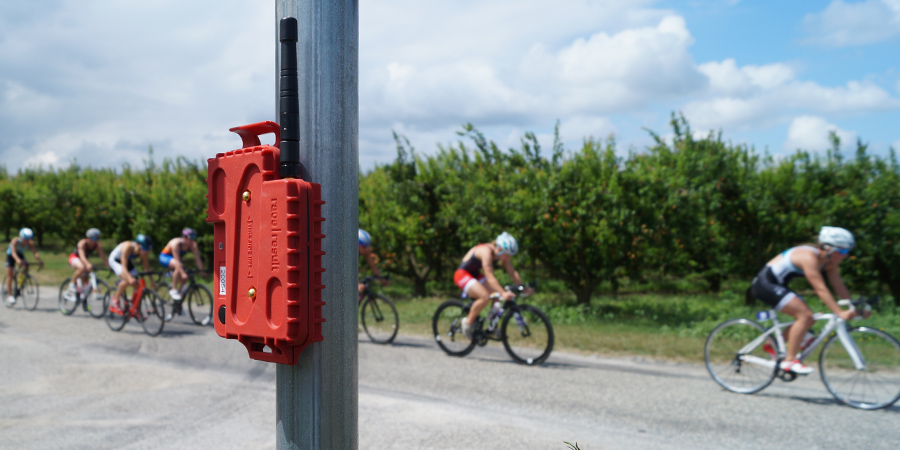

The magnets built in the Track Box allow you to mount it very easily on any metal sign along the course (or on moving vehicles).

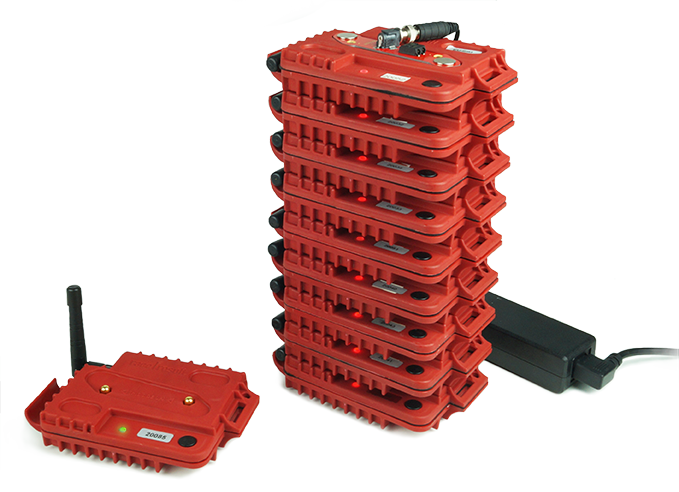

You can also stack up all your Track Boxes to turn them all on or off and charge them all at once.
Pricing for the Complete Solution
| rent | buy | ||
| RACE RESULT ActivePro V3 Transponder | n.a. | $ 44 - $ 72.50 | per transponder |
| RACE RESULT ActivePro V2 Transponder | $ 3.50 - $ 4.50 | n.a. | per transponder |
| Track Box Active 4G (10 boxes) | $ 439 | $ 5,699 | per case (10 Track Boxes) |
| Active Management Box | $ 179 | $ 1,050 | per piece |
| All prices plus VAT / tax if applicable Rental option for Track Boxes only available in selected regions |
|||
Software partners
To publish tracking visualisation, you can work with one of the following software partners:
Own tracking software solution
Are you developing your own tracking software solution? Our communication protocol is totally open, you access it in our Knowledge Base.
Feel free to contact us any time with questions or suggestions.
