The Next Generation
All you have desired a timing system to be like.
And even more.
→
First Class
Usability

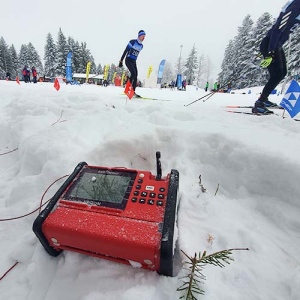

Ubidium can be operated in any weather condition.Display and buttons are always visible and accessible. The control unit does not need to be protected by a lid.

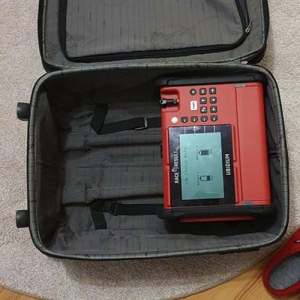

Solid & Lightweight
Design
The completely new form factor guarantees maximum flexibility. With two batteries inserted, it weighs only ~ 4.1 kg. The connections on the front and back allow easy operation.
Brilliant
Power Management
Insert one or two batteries and hot swap them while switched on. In active timing mode, you can reach over 30 hours of runtime! Ubidium can also be powered via USB-C, POE, DC or even solar panel.

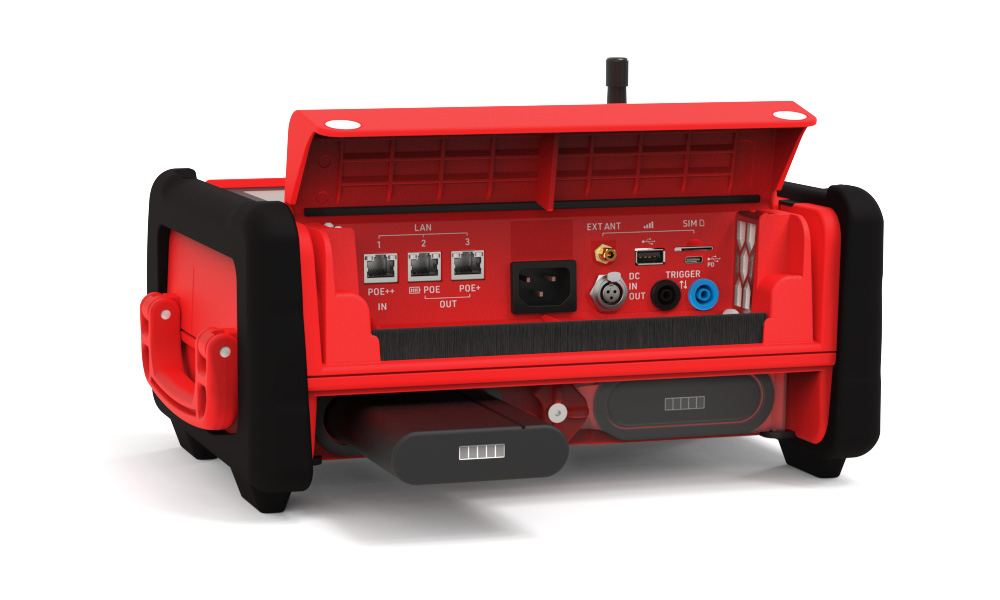

The protective flap will always fall down automatically, close with integrated magnets and push all cables into the broom. Thereby, all connector ports are protected from rain, mud and splashing water.
Ubidium offers more connectivity options than any timing system on the market. This includes POE, USB-C, AC and DC, and a SIM slot. An additional SIM card is installed inside the system.
Learn more
Moisture and heat are blown out of the system through the ventilation grille. This enables operation in extreme conditions and conserves the electronic components.
The bumpers made of durable rubber protect against impacts, ensure a stable stand and make the systems stackable. They can be removed; however we recommend leaving them on.
The batteries can be hot swapped during timing. The transparent battery cover makes it possible to read the charging status at any time. The batteries can be charged internally.
The broom ensures that no water gets to the connectors from the outside, even when all cables are connected.
The handle makes it easy to carry the system over long distances. With two batteries inserted, Ubidium weighs only 4.1 kg.

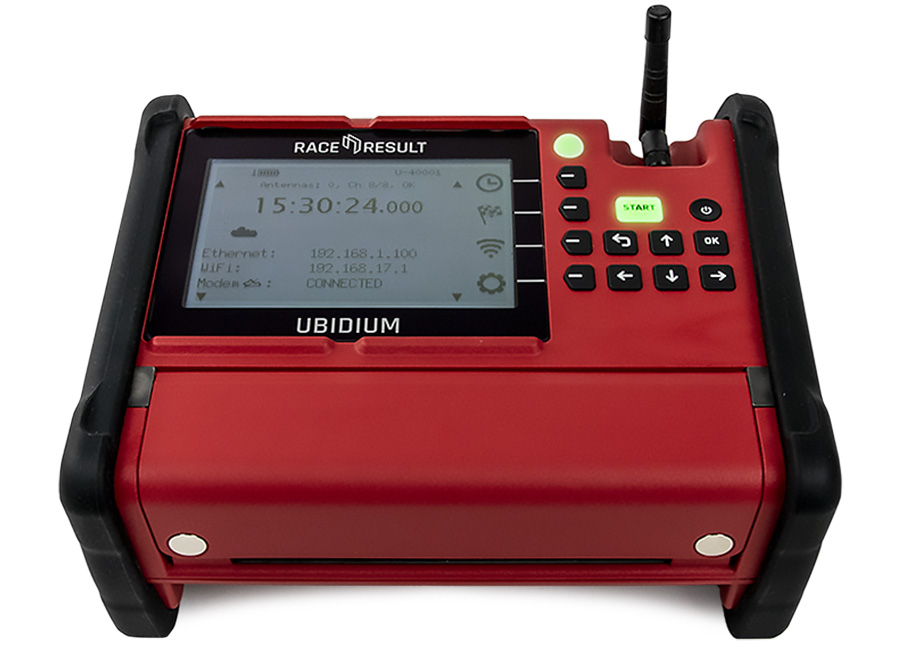

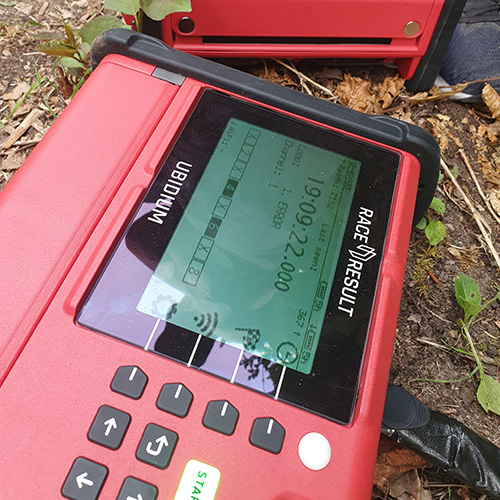

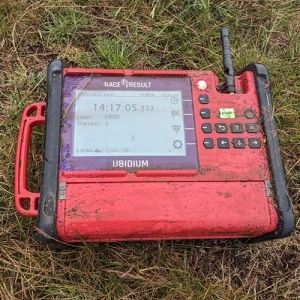

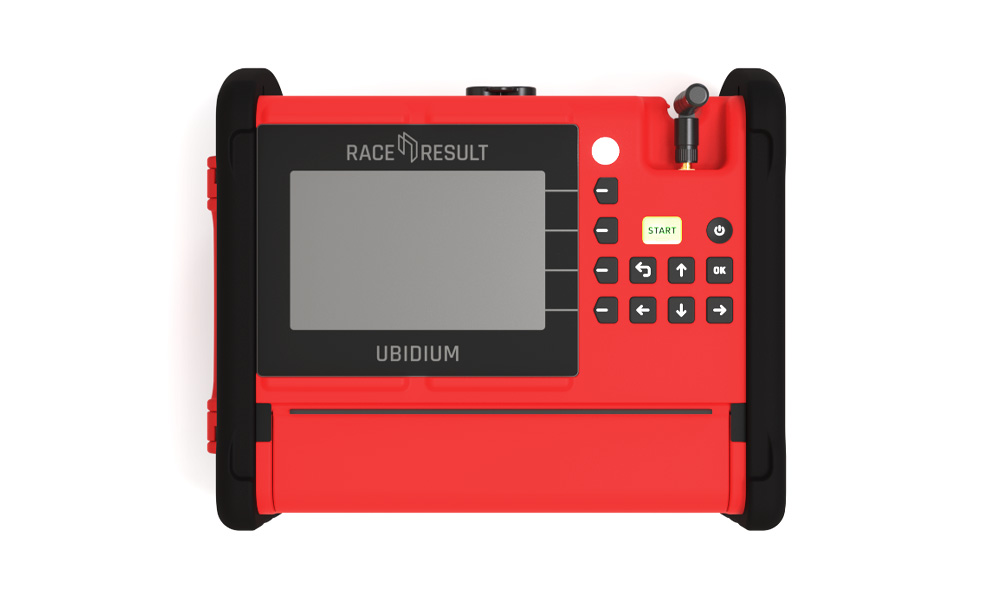

The 6.2″ display features an adjustable backlight with customizable background color. Thanks to its high contrast, it remains legible even in the brightest sunlight. It is covered with an extremely robust glass.
With the help of the clearly visible status LED, you can quickly see whether the system is running properly (green) or whether it requires operation (red).
All buttons have a pleasant pressure point and are easy to use even with gloves. Like the entire surface, they are waterproof.
The active timing antenna is used to receive data from Active Transponders and Loop Boxes. Please put it upright during your event.
Active loop plug: Connect the banana plugs of your loop cable into the device and directly start timing with active transponders. No additional device needed!
Expansion port to plug in the Y-Bridge Cable of the Foldable Ground Antenna. The cable serves for both, power supply of the antenna and data transmission.

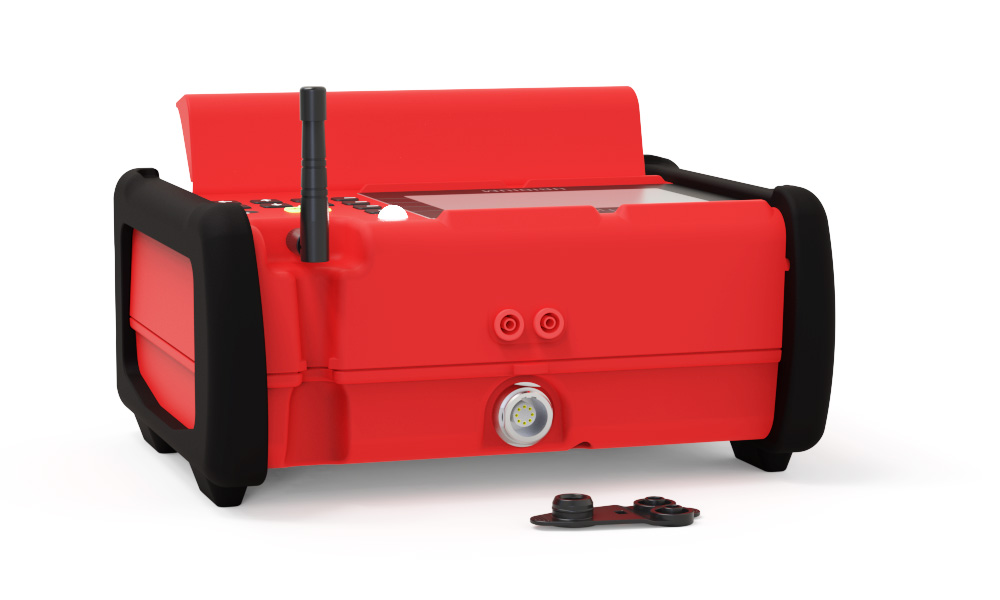

A port cover made from durable rubber material protects the rear connectors from moisture, dust and impacts.
Ubidium is $ 3,690 plus VAT / tax and shipping.
Scope of delivery:- 1 Ubidium
- 1 Battery 94 Wh
- 13 m loop cable
- AC power cable
Please note that we cannot currently provide an exact delivery time for your Ubidium order.
Payment is due shortly before shipping.
If you order more than one Ubidium, we will dispatch only the first device initially, with the remainder to follow at a later date. We will cover any additional shipping costs resulting from this.
We embedded a video from a third party (www.youtube.com) here.
By showing the external content you
accept YouTube's terms and conditions.
This is Ubidium #1
Design & Features Overview
This is Ubidium #2

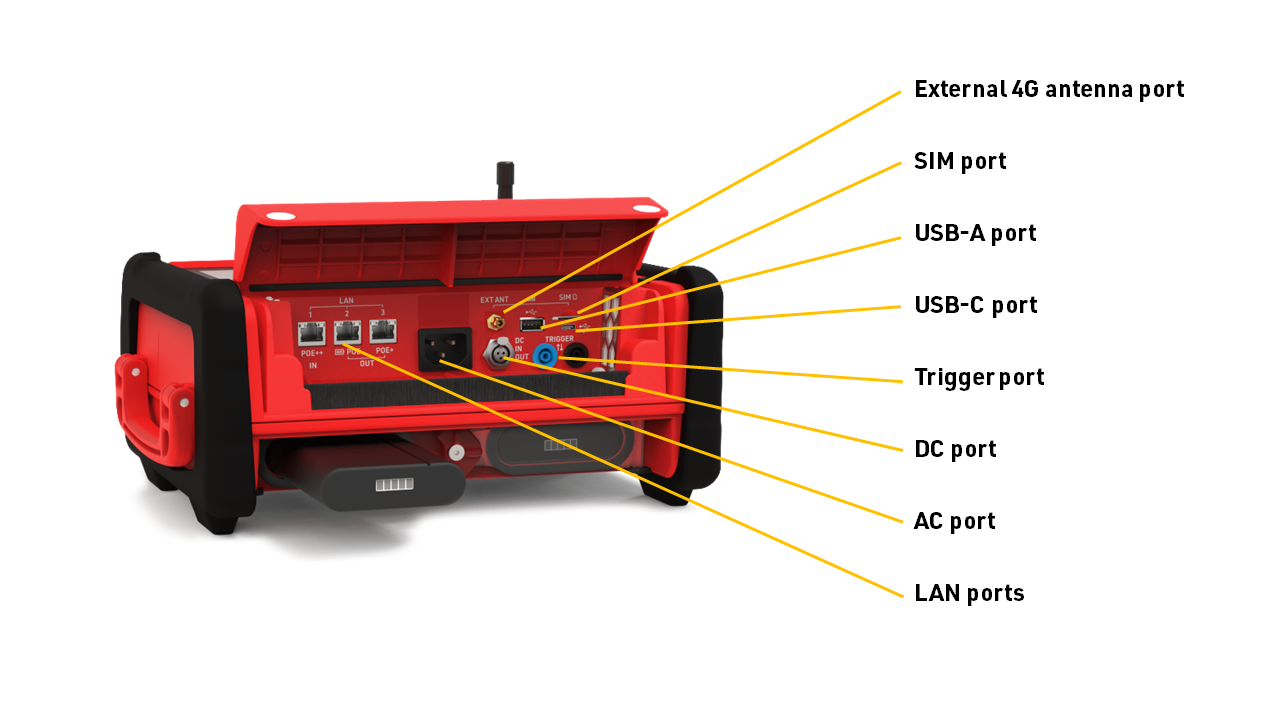

Connectors
This is Ubidium #3
Batteries & Charging
This is Ubidium #4
Display & Menu
This is Ubidium #5
Wi-Fi Connection
This is Ubidium #6
Timing an Event

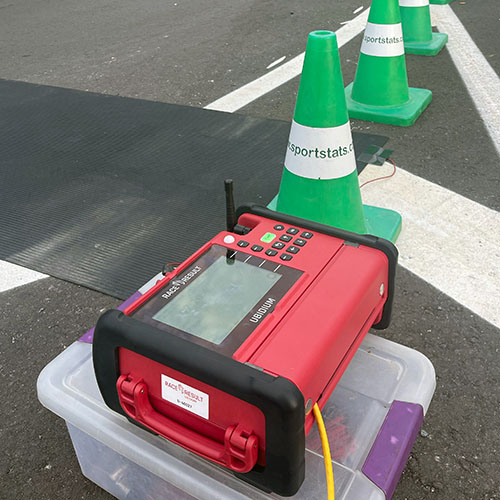

Enhanced Active Timing
Directly plug your active timing loop into Ubidium. No more extensions required. Build timing lines with widths of up to 30 meters* and with 100% loop power. Ubidium fits seamlessly into the existing RACE RESULT active system architecture, supporting functionalities like stored passings and repeat mode.

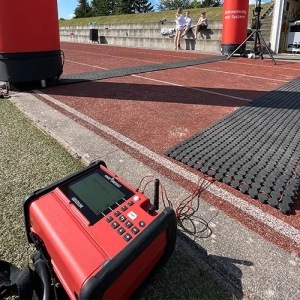

* depending on regulatory regionRevolutionary Ground Antenna Concept
The new foldable ground antenna connects with a single plug - and you’re ready to go. Each antenna element now contains its own UHF element, enabling antenna lengths of 23 m with one single system and 6 hours battery runtime.
Unparalleled Connectivity
Ubidium has GPS and 4G on-board. 3 Ethernet ports provide extended networking capabilities, internal switching to connect multiple devices. You can even power them over POE using the internal Ubidium battery.Internal and external SIMs allow for data transmission backup and, if necessary, remote support access to the device. Ubidium can connect directly to your PC via USB-C. It also offers Wi-Fi, USB-A, DC Power In, trigger input/output and the connection of an external 4G antenna.

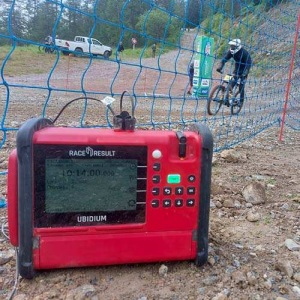

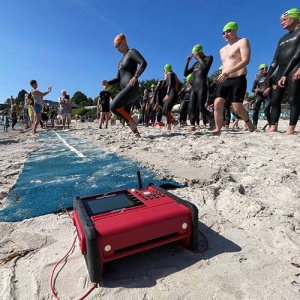

Resistant in All Conditions

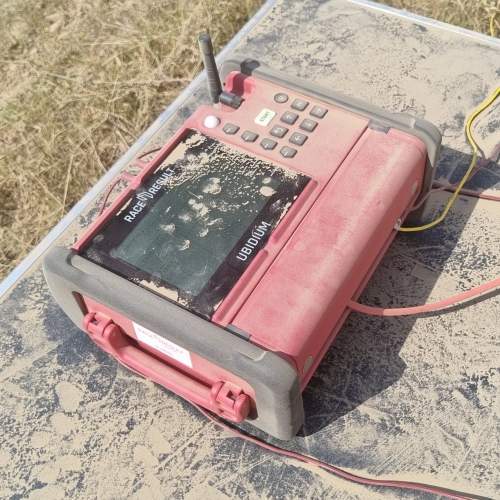

Ubidium ensures optimal performance in all weather conditions. A heating element keeps the device above freezing point, ensuring optimal battery performance. An integrated fan will cool the system down if necessary and blows moisture out if the integrated humidity sensor indicates a condensing risk.
The front lid covers the connectors and effectively protects the system from rain and splashing water.
Exceptional LCD Display
We have paid particular attention to the readability and usability of the display. The 6.2’ screen in combination with the always visible LEDs and large buttons, makes it easy to maintain an overview of all relevant timing data and functions. The display is even readable in extreme temperatures.
Stacked Operation & Charging
With all ports accessible from the front, multiple systems can be stacked and charged at the same time. The LCD on the battery shows the charging level at any time.
| General | |
| Weight |
~4.1 kg with two batteries (each 450 g)
~3.2 kg without batteries |
| Dimensions |
312 x 251 x 140 mm
1 x 0.8 x 0.4 ft |
| IP Rating |
Lid open: IP21 (objects > 4 mm, dropping water) Lid closed: IP44 (objects > 1 mm, spray water from all sides) |
| Temperature range |
-20 °C – 40 °C (50 °C in shade) /
-4 °F – 104 °F (122 °F in shade) |
|
Power performance may be reduced above 25°C / in strong sunlight.
Heating Element keeps System above freezing point for battery charging when connected to sufficient power. |
|
| Power Connectors & Ratings | ||
| Pmax | ||
| AC connection | 100 – 240 V / 47 – 60 Hz | 100 W |
| DC In battery |
11 – 16 V / 5 A
2 A on older systems |
80 W |
| DC Out | 11 – 16.8 V (fused 2.3 A) |
25 W (empty battery)
40 W (charged battery) |
| USB-C PD In | PD supply min. 15 W (9/15/20 V up to 3 A) | 60 W |
| PoE-In | 802.3 bt / PoE++ | up to 65 W |
| PoE-Out (low power) | 802.3 af / PoE |
15.4 W out
always active, battery supplied |
| PoE-Out (high power) | 802.3at / PoE+ |
30 W Out
only active with AC or PoE++ supply |
| Battery & Power (Preliminary) | |||
| Batteries |
1 – 2 x Inspired Energy NH2054RR34 94-98 Wh Lithium Ion Smart Battery |
||
| All including 4G | 1 battery | 2 batteries | Power consumption* |
| Battery life active (50 % loop power) | 16 h | 32 h | 6 W |
| Battery life passive (4.6 m antenna / 6 segments) | 6 h | 12h | 13.4 W |
| Battery life passive (7.7 m antenna / 8 segments) | 5 h | 10 h | 19 W |
| Battery life passive (15.4 m antenna / 16 segments) | 4 h | 8 h | 22.6 W |
| Battery life passive (23 m antenna / 30 segments) | 3 h | 6 h | 31.4 W |
| * not charging, mobile data and 4G active, no Ethernet | |||
| Connectivity | |
| WiFi | WiFi 802.11ac/a/b/g/n |
| Bluetooth-Technology | BT 2.1+EDR and BLE 5.2 |
|
4G / LTE / 3G / 2G Module 29 Band Worldwide Coverage |
FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B26 / B28 TDD: B38 / B39 / B40/ B41 WCDMA: B1 / B2 / B4/ B5 / B8 / B6 / B19 GSM: B2 / B3 / B5 / B8 2FF standard / mini-size SIM Card Antennas: Main Internal or External SMA, Diversity Internal only |
| GNSS receiver | GPS/GLONASS/BeiDou/Galileo |
| 3x LAN | all 1 GBit/s |
| Trigger | Input or output, 3 – 12 V or Open Collector |
| USB-A Connector | USB 2.0, 5 V / 500 mA, Host Port |
| USB-C Connector | USB 2.0, 5 V / 900 mA, Dual-Role, Power Delivery IN |
| UHF Transponder | Gen2, can be programmed by system |
| Active Timing | |
|
2.4 GHz channel frequencies
main / backup (worldwide compliance) |
1: 2.480 MHz / 2.405 MHz 2: 2.405 MHz / 2.470 MHz 3: 2.425 MHz / 2.465 MHz 4: 2.475 MHz / 2.440 MHz 5: 2.415 MHz / 2.445 MHz 6: 2.460 MHz / 2.430 MHz 7: 2.435 MHz / 2.455 MHz 8: 2.450 MHz / 2.420 MHz |
| 2.4 GHz TX power | 17 dBm |
| 2.4 GHz Antenna | 3 dBi Gain |
| Loop frequency & data |
125 kHz Packet rate: 150 Hz OOK-modulation, manchester encoded, 16 bit anti-false-wakeup pattern |
| Loop dimension |
5 m – 60 m cable length, >0.5 mm², width 0.3 – 0.6 m 4 mm safety banana plugs |

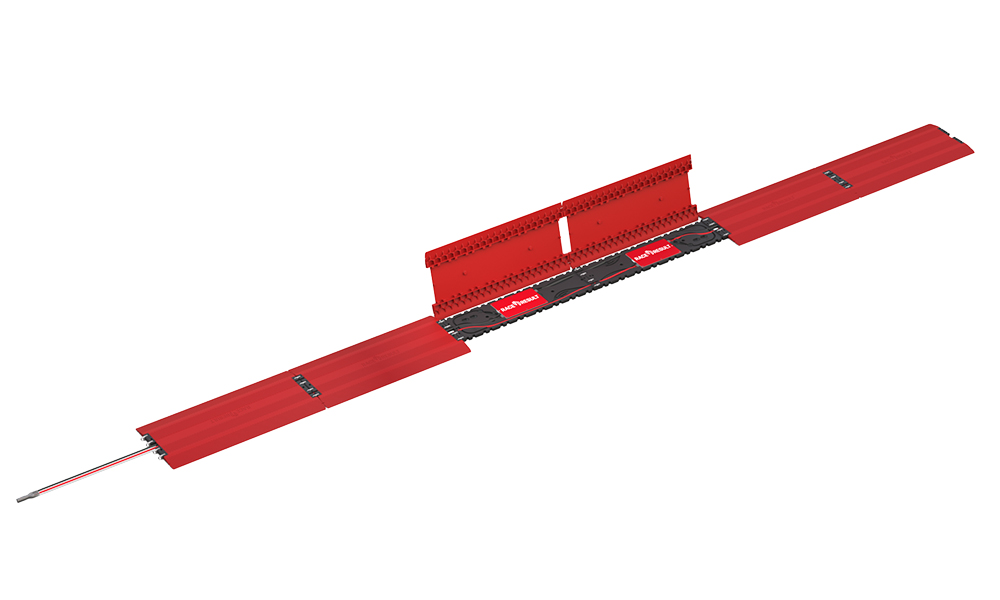

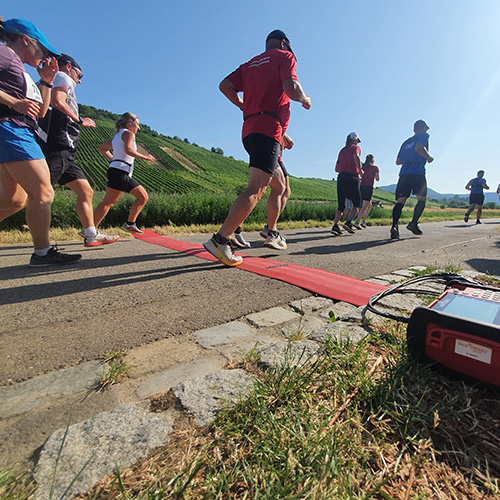

Ubidium Foldable Ground Antenna
The new foldable ground antenna delivers unprecedented flexibility and the highest detection rates.

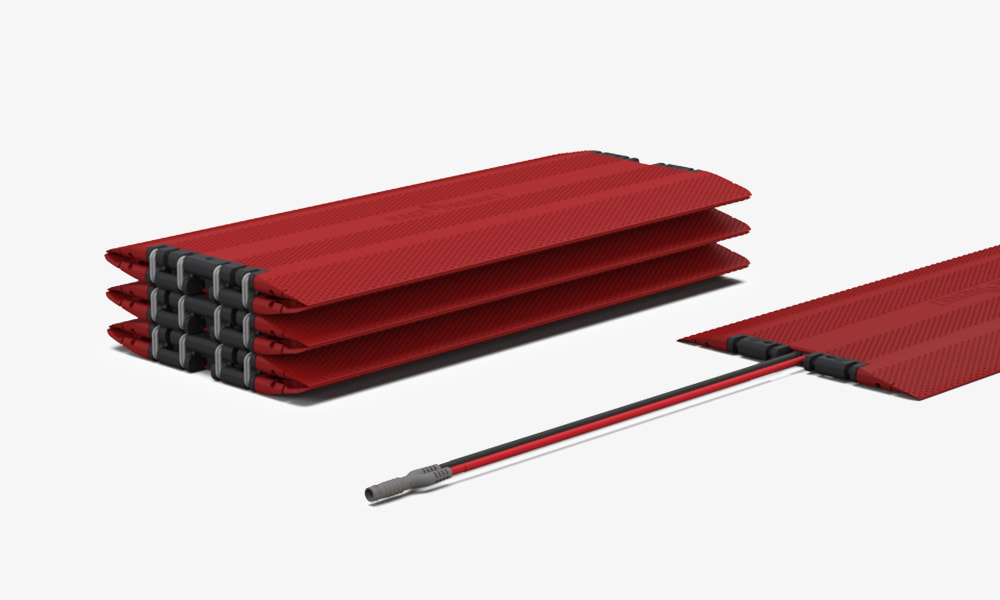

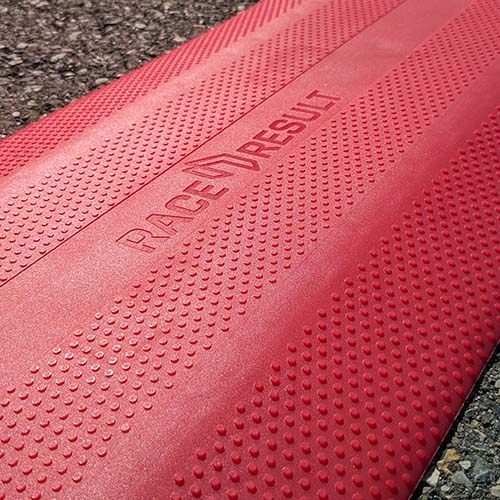

Each element contains a specially developed RACE RESULT UHF reader. The mat connects directly to Ubidium. It can be adjusted in length as desired, up to 23 meters per system (30 segments)!

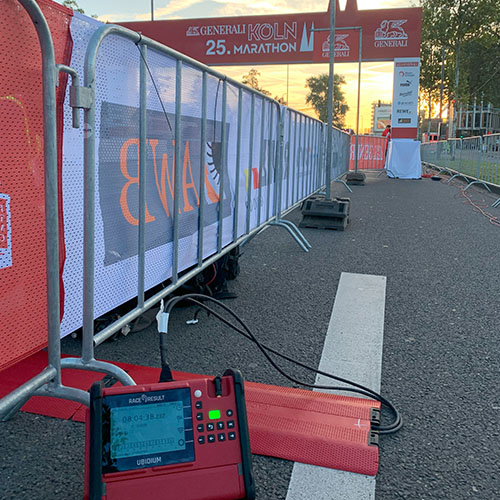

Plug and Go

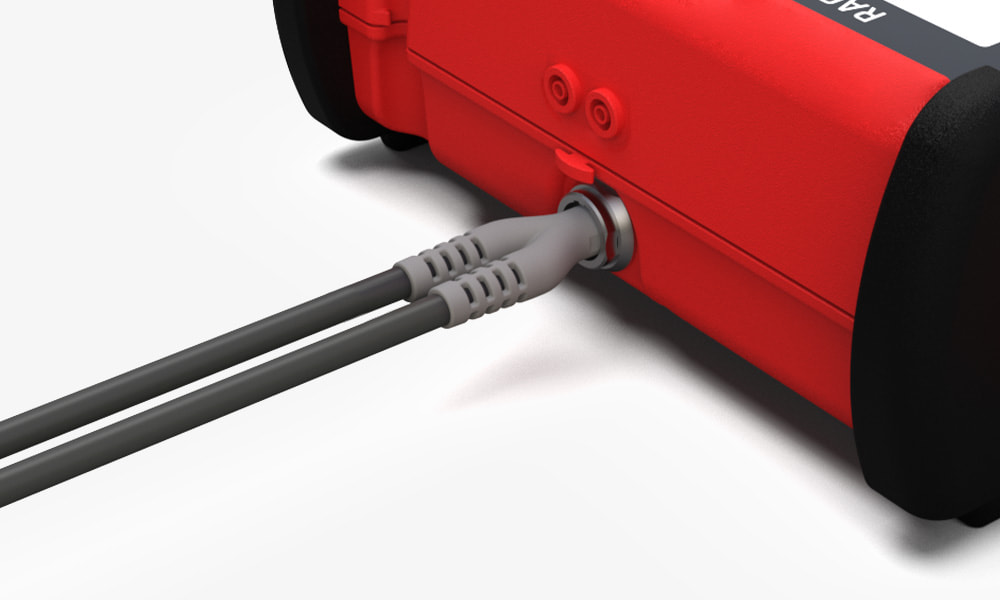

The mat connects directly to Ubidium with a single connector, no additional device required. For reliability, two independent, robust cables lead to the first antenna segment and form two separate strings throughout the whole mat.

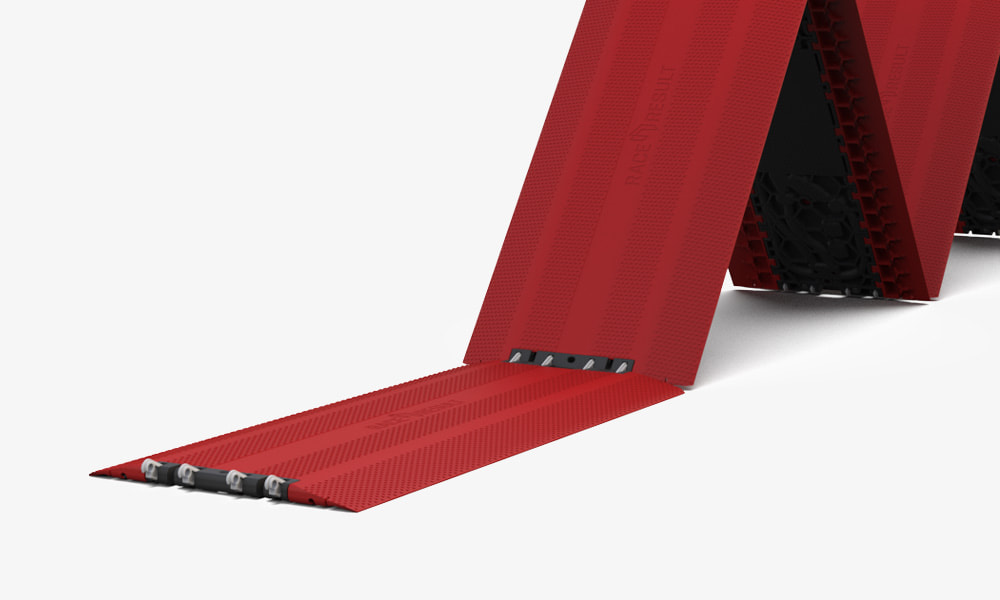

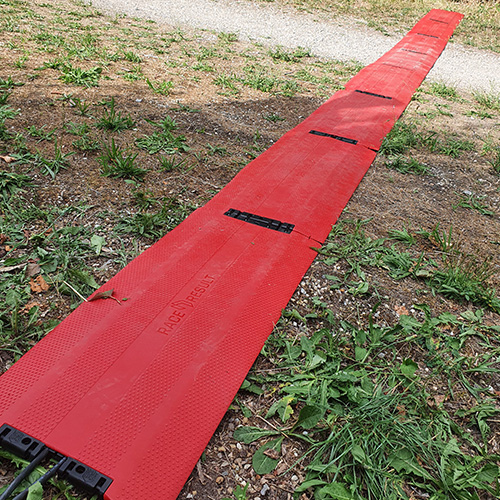

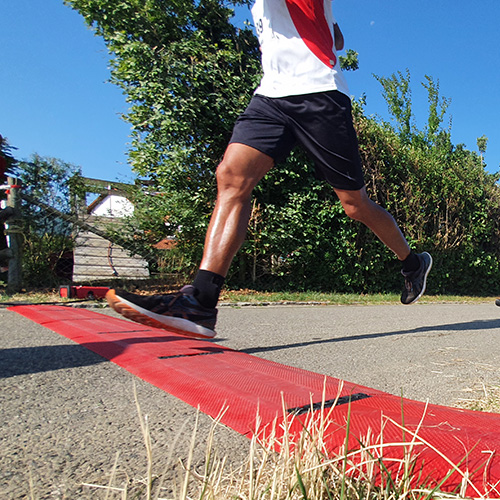

Improved Shaping, Less Weight

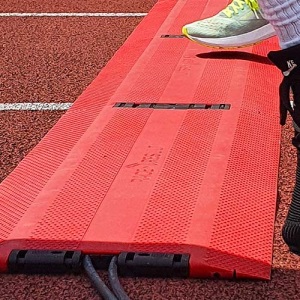

The new design gives the mat an even better profile on the road and flatter edges allow for a more comfortable ride. At 77 cm, the segments are longer than before, in the standard 4.6 meter configuration (6 segments), the mat weight is just 24 kg.
Up to 23 m Mat Length
As you are not limited by the 8 ports of conventional UHF readers you can now create up to 23 m long timing mats.Each mat segment contains its own integrated reader and antenna, specifically designed by RACE RESULT for sports timing purposes.It requires less power than standard UHF readers, therefore increasing system battery life. It also allows synchronized reading with multiple elements at the same time, significantly increasing read rates and timing precision.
Interleaving Connection

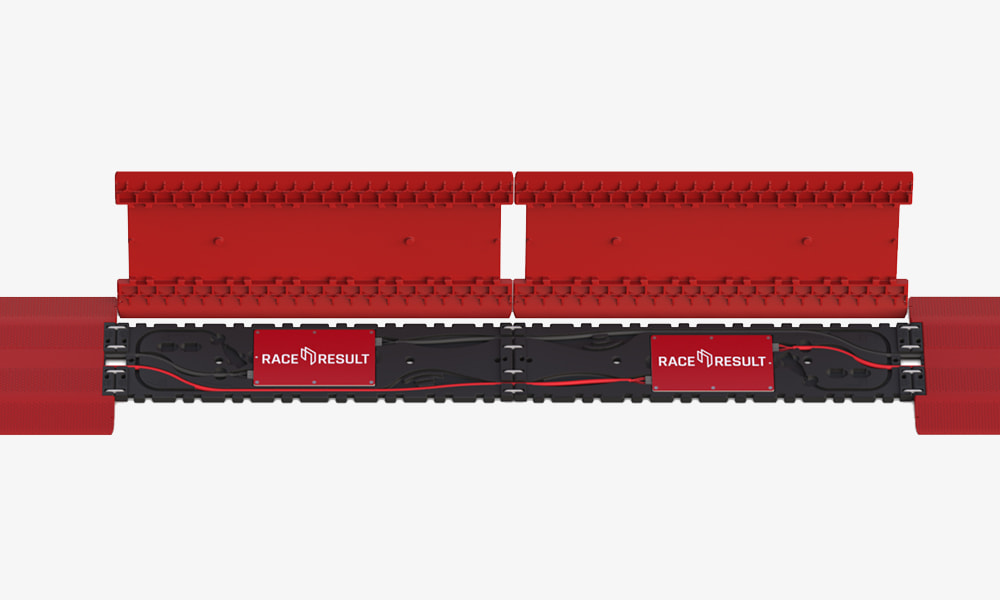

Every reader element is connected to the reader 2 mats earlier, creating two separate data lines in an A-B-A-B scheme. A defective element does not block later segments from functioning, and even if one complete strand should fail, timing remains functional.
Easy Length Adaption

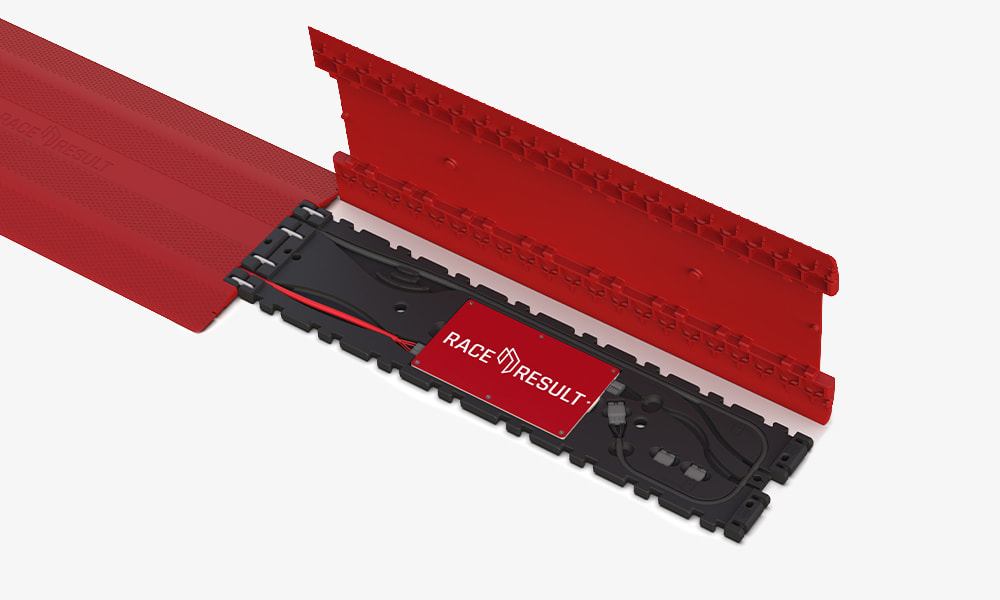

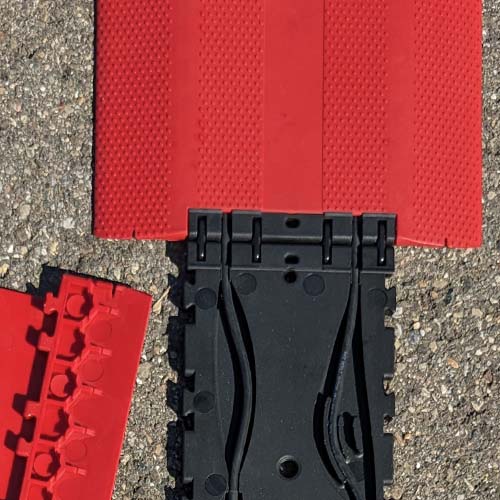

You only need to open one antenna segment on either side of the joint to split the mat. The cables for each segment can stay inside the mat at any time using the inner storage channel. The mat can be extended/shortened by pairs of two segments, resulting in widths between 1.5 m (2 segments) and 23 m (30 segments).
|
Ubidium Bundle 4.6 m
Ubidium Timing System + 4.6 m Ubidium Ground Antenna |
$ 5,890 |
|
Ubidium Ground Antenna 4.6 m (incl. Connector) *
6 Segments + Connector Cable |
$ 3,020 |
|
Ubidium Ground Antenna Extension 1.5 m
2 segments of 0.77 m each |
$ 920 |
|
Ubidium Ground Antenna Connector
Cable for connecting the Ground Antenna to the system |
$ 260 |
|
Ubidium Ground Antenna - Reader Cable (with screws)
Additionally required when connecting three 4.6 m antennas in sequence. Serves as spare part as well. |
$ 40 |
| All prices plus VAT / tax if applicable | |
| Single Antenna Segment | |
| Dimensions |
77 x 35 x 2 cm /
2.5 x 1.1 x 0.07 ft |
| Weight | 3.5 kg |
| IP Rating |
IPX7 (shortly submerging won't destroy) |
| Polarization | Linear along the direction of crossing |
| Typical Configurations | |||
|
"Ubidium Ground Antenna"
Standard configuration |
6 segments |
4.6 m /
15 ft |
24 kg |
|
"Ubidium Ground Antenna Extension"
Shortest possible configuration |
2 segments |
1.5 m /
5 ft |
7.6 kg |
| Standard + 2 Extensions | 10 segments |
7.7 m /
25 ft |
38.6 kg |
|
Maximum possible length
Standard + 12 Extensions |
30 segments |
23 m /
75.5 ft |
114.6 kg |
