The Evolution of UHF Timing
Track Box Passive

Never before it has been so simple to set up a timing point and send live data from the course! The RACE RESULT Track Box Passive is easy to carry, installed within seconds and developed to collect data for a whole day.
With participants wearing inexpensive disposable transponders on their bibs, this is the ideal solution for additional check points, remote timing locations or trail runs.

Event Reference

Pitz Alpine Glacier Trail

Tirol, Austria

The Pitz Alpine Glacier Trail 2021 was timed by Timit using the Passive System. The ~1.000 participants could decide between distances of up to 105 km. Such an event is the perfect terrain for the Track Box Passive. The density at the split points is low, volunteers can easily carry the boxes to the timing location and set them up. The boxes are controlled remotely with RACE RESULT 12 software and send their timing data live. At major timing points (start, finish) with a higher density of runners, the combination of Decoder and Ground Antenna is ideal. For the whole event, a total of 7 Decoders and 7 passive Track Boxes were used. The timing could be managed by only one person!

  • Self-sufficient device
    With its integrated UHF reader, LTE modem, battery, SIM* and GPS, the TrackBox Passive is a complete timing sytsem. It can even be connected to a solar panel ↗ for permanent installation.
  • Hands-free solution
    Being pre-configured, the device is activated with one click of a button click and now runs autonomously. It needs no further operation by a helper to send detection data for 10-18 hours.
  • Unmatched dimensions
    With a weight of only 1.7kg/3.7lbs, the box can be easily carried to remote locations. Automatic standby mode lets the box preserve energy during the night.
  • Remote control
    Main functionalities can be configured and managed via an online interface.

* The necessary SIM cards are not included in the purchase.

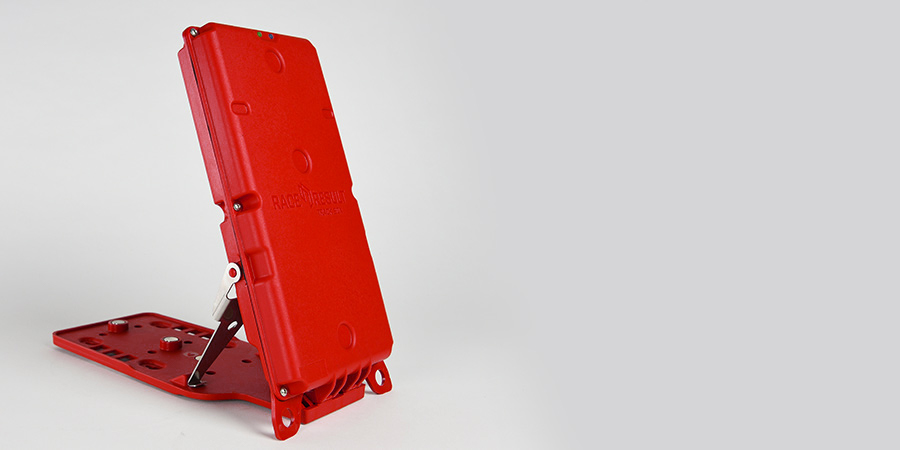

Explore the Track Box!

Two status LEDs indicate GPS, network and reader status at any time. If a transponder is detected, the LED blinks blue and the box beeps.

SIM Card Slot
You can open the box to insert your own SIM. The integrated LTE modem can now send data to the server-adress you configured. All important settings can be defined with the online configuration or through Track Box Configuration Rules.

RFID Reader
At only 4 watts, the custom RACE RESULT reader has the lowest power consumption on the market. The RAIN UHF Gen2 protocol parameters are tailored specifically for timing applications. The reader is orientation-aware: It automatically switches to standby mode if the box is laid flat facing upwards.

Button (backside)
The device is switched on and off with one button click. The button can be locked via an configuration software.

Mounting options
The box has three magnets integrated. They allow the box to be hung from lampposts or street signs. With the box hanging, the angle can be adjusted to ensure the antenna points directly towards the transponders. It can also be placed on the ground and secured with the provided stakes.

Battery & Charging
The box has three 4000mAh 3,7V Li-Po batteries with a total capacity of 45Wh. Battery life is 10-18 hours in operation and 10 days in standby. With the 12V AC power supply and double charge adapter, two boxes can be charged simultaneously. With the reader in standby, charging time is 6 hours.

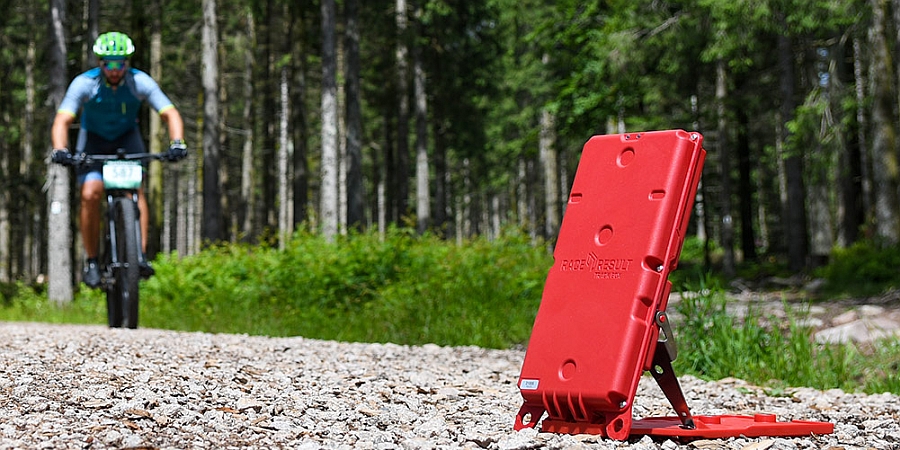

The Track Box Passive is set up along the course where the density of participants is not too high.
Ideally, the device is installed perpendicular (90 degrees) to the direction of travel. With the optimal setup and transponders worn correctly, you can expect >99% detections within 4 meters range.
Transponders up to 25 meters may be detected, but with reduced read rates. Please note: All UHF timing systems need a direct line of sight between transponder and receiving antenna.
The Track Box Passive combines the transponder read with the current GPS position and sends the data via SIM card to a defined server. It is seamlessly integrated into RACE RESULT 12 timing software where it is operated like a conventional timing system.
The configuration of the box is done via online interface. Some parameters can even be changed by sending an SMS to the box. Learn more about the configuration here.
The Track Box Passive is not designed to be used as timing system for start and finish lines. Wherever you require highest precision and rely on a detection, please use a ground antenna.


Track Box Passive

UHF transponder timing with only one small device. Eeasy to carry, super fast in setup and managed remotely. With UHF reader, GPS and battery integrated, it is the ideal device for split points, remote timing locations and advanced race visualization. Internal battery for 10-18 hours. Can also be powered by solar panel or external sources.


Receives the signals from the transponders, calculates the exact finish time and provides the data to the scoring software like RACE RESULT 12 in real time. Internal battery for 8-10 hours, integrated 4G module, precise GPS time, 2 ethernet ports.

Foldable Ground Antenna

The patented red mat has become inherent part of hundreds of start and finish lines in sports competitions all over the world. The setup can be done in a few seconds. This saves personnel and storage costs. Race organizers benefit from the quick installation of split points.

Bib with Transponder

UHF transponders specially developed for sports timekeeping. Praised by customers worldwide for highest detection rates. The accuracy is 0.2 s. Transponders are available on roll or ready-attached to a customized, personallized Tyvek bib.

Safety Pins


RACE RESULT 12 Software

The complete software for timing and managing of any kind of sports event. The intuitive user interface allows you to setup events without complicated formulas or calculations. Featuring registration, event timing, scoring, live results and various output options in one browser-based solution.

We embedded a video from a third party ( here.
By showing the external content you accept YouTube\'s terms and conditions.

Ready to go

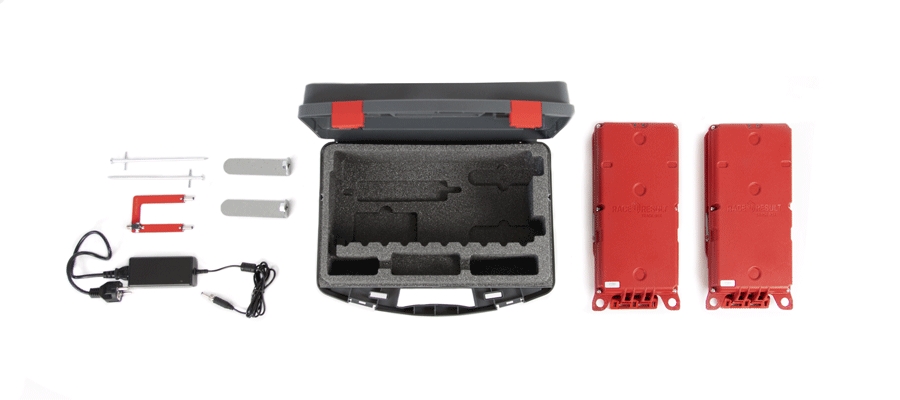

The foam-padded Track Box case with shoulder strap includes:

  • 2 Track Boxes
  • 2 tripod mounts
  • 2 stakes
  • double charge adapter
  • 12V AC adapter
  • mains power lead

Pricing for the Complete Solution

rent buy
RACE RESULT Track Box Passive Set $ 369 $ 3,099 per case with 2 boxes
Bib with Transponder (duo) $ 1.36 - $ 1.61 per race number
Safety Pins
to attach the transponder
$ 7.51 per 1000 units
Software RACE RESULT 12
including online registration
  $ 0.05 - $ 0.30 per participant
All prices plus VAT / tax if applicable

Case Study

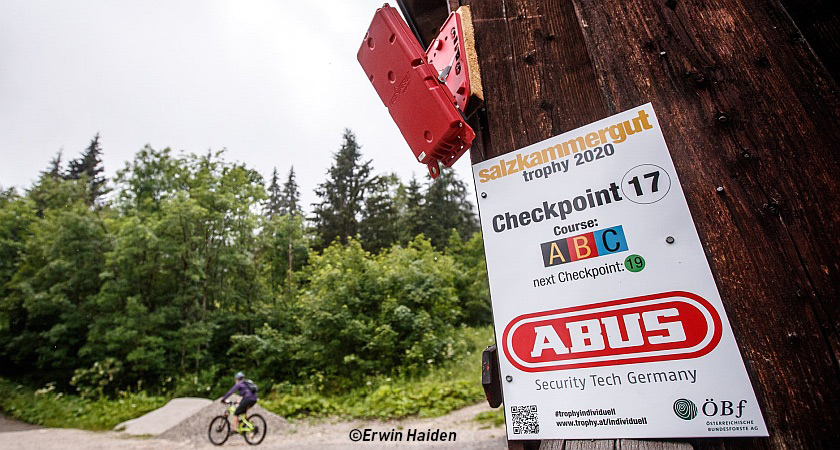

Salzkammergut-Trophy 2020

The Track Box Passive was used to install a semi-permanent MTB race course.
Due to corona restrictions, the event itself could not take place. But participants were now able to do their own race on the original course within three months and receive official results.
The case study explains how the Track Boxes were installed, how the timing software is set up and how the handling of race numbers can be organized.

Case Study

Tracking trail usage in a ski resort

The RACE RESULT Track Box Passive was installed to track season passes without employees having to manually scan tickets.
Each season pass holder was issued a TAVI card with unique transponder ID so that the use of the trails could be monitored live and analyzed.
