Timing solution for
Motocross / Enduro

Red Bull Erzbergrodeo

Erzberg, Austria

The Erzbergrodeo is one of the world’s most iconic enduro events, held annually at a dramatic open-pit mine in Austria. The 2024 edition marked the first use of RACE RESULT technology, streamlining timekeeping for 1,500 riders with ActivePro V3 transponders worn on their wrists. A network of 27 checkpoints equipped with Ubidium systems, Loop Boxes, and Decoder 5000S ensured precise timing, rider monitoring, and real-time data transmission for live TV broadcasts. For off-road durability, loop cables were either buried beneath the track or mounted on stands as side antennas. The system eliminated manual recording, allowing riders to pass checkpoints seamlessly. With a detection range of up to two meters and perfect accuracy, the technology significantly enhanced the event for both participants and organizers.

The Technology Behind World-Class Events

Motocross and Enduro races demand a timing system built for tough conditions. The RACE RESULT Active System combines robust hardware, accurate transponders, and wireless checkpoints to deliver reliable lap timing and verify course compliance. A proven solution for both professional and amateur events.

Why our solution?

High Detection Range

The ActivePro V3 transponder delivers accurate detection up to 2.5 m in height, with a precision of 0.004 seconds.

Ultra-Rugged Hardware

The Ubidium timing system withstands dirt, dust, and rain. With long-lasting batteries and mobile connectivity, it reliably operates in remote environments.

Smart Checkpoints

Place small, wireless Track Boxes at key points to confirm riders follow the correct route and capture split times anywhere on the course.

Setup

We recommend burying the loop in conduit under the track. This protects the loop should the ruts on the course get deeper. Make sure that the loop is not laid out immediately after a jump, as heights of over 2.5 m can here be reached quickly, which means that the transponders could no longer be detected.
The best way for drivers to attach the ActivePro V3 transponder to the front fork is to use the Active Chip Holder. However, make sure to leave as much distance as possible to other electronics.
Connect your Ubidium timing system to a laptop via LAN or WiFi to get all finish times in real time. In RACE RESULT 12 software, use the "Lap race" template. This template is the perfect place to start and may already have everything you need.

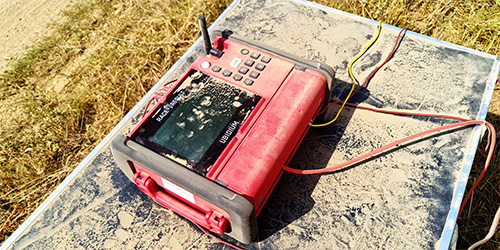

Ubidium

The cutting-edge timing system designed for superior performance and versatility. Boasts exceptional weatherproofing, lightweight design, and up to 32 hours battery life. Data is transmitted in real-time through multiple options, including SIM, Ethernet, POE, or USB-C connections.

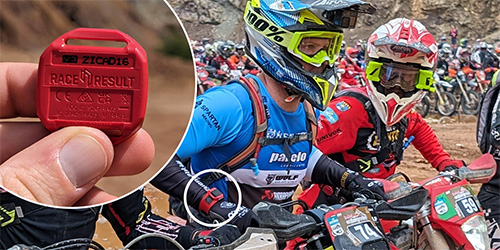

ActivePro V3 Transponder

The most powerful active transponder on the market. With an outstanding accuracy of 0.004 seconds at speeds of up to 120 km/h, it is the ideal choice for most events. The guaranteed battery life of 5 years ensures reliable operation. Thanks to Tracking Mode and Store Mode, numerous split times can be recorded with minimal setup – unique in its class.

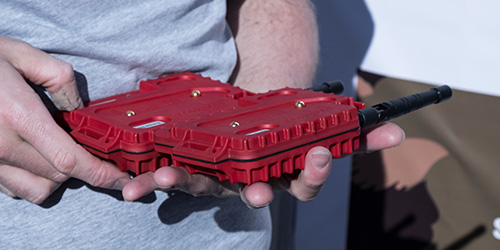

Loop Box (Optional)

Easy and cost-effective way to collect splits times. At nearby timing points detections are repeated wirelessly to the main system. In case of remote timing points, the ActivePro Transponder saves the passing time and then transmits them when arriving at the finish. Integrated battery for 12-20 h.

Track Box Active (Optional)

Provide tracking and timing with the same active transponder. Track Boxes placed along the course or on race vehicles receive pings from all tracking-enabled transponders within a 50 m radius and transmit the data live online.

RACE RESULT 12 Software

The complete software for timing and managing of any kind of sports event. The intuitive user interface allows you to setup events without complicated formulas or calculations. Featuring registration, event timing, scoring, live results and various output options in one browser-based solution.

Active Transponder Holder (Optional)

Pricing for the Complete Solution

rent buy
RACE RESULT Ubidium n.a. 2,990 EUR per system
Optional Active Loop Box V2 139 EUR 1,890 EUR per piece
RACE RESULT ActivePro V3 Transponder n.a. 35 EUR - 58 EUR per transponder
RACE RESULT ActivePro V2 Transponder 2.50 EUR - 3.50 EUR n.a. per transponder
Active Transponder Holder   3.00 EUR per piece
Software RACE RESULT 12
including online registration
  0.09 EUR - 0.32 EUR per participant
Optionally: payment processing
for online registration
1%-5% plus transaction fee
depending on the payment method
All prices plus VAT / tax if applicable
×
