All you have desired a timing system to be like.
And even more. →

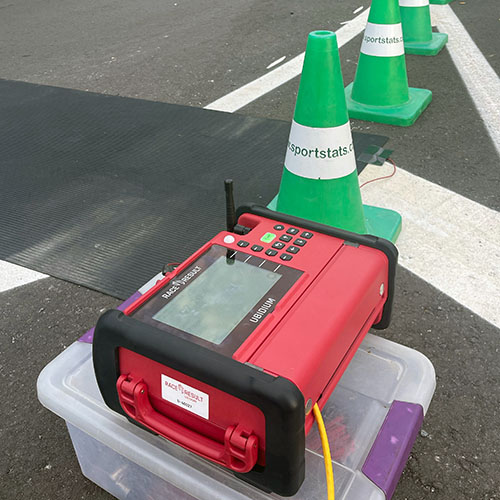

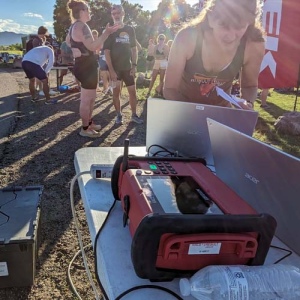

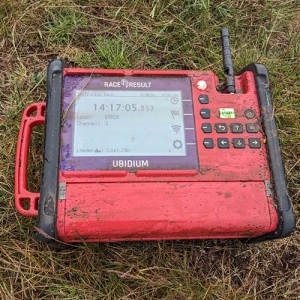

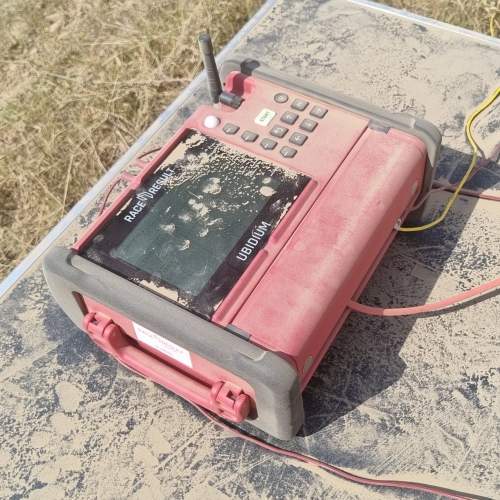

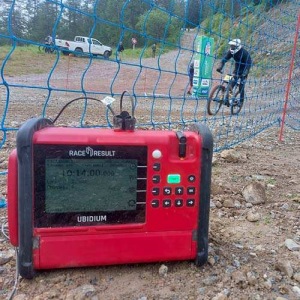

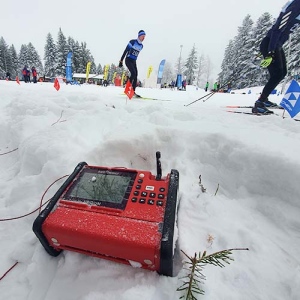

Ubidium can be operated in any weather condition. Display and buttons are always visible and accessible. The control unit does not need to be protected by a lid.
Solid & Lightweight
The completely new form factor guarantees maximum flexibility. With two batteries inserted, it weighs only ~ 4.1 kg. The connections on the front and back allow easy operation.
Insert one or two batteries and hot swap them while switched on. In active timing mode, you can reach over 30 hours of runtime! Ubidium can also be powered via USB-C, POE, DC or even solar panel.

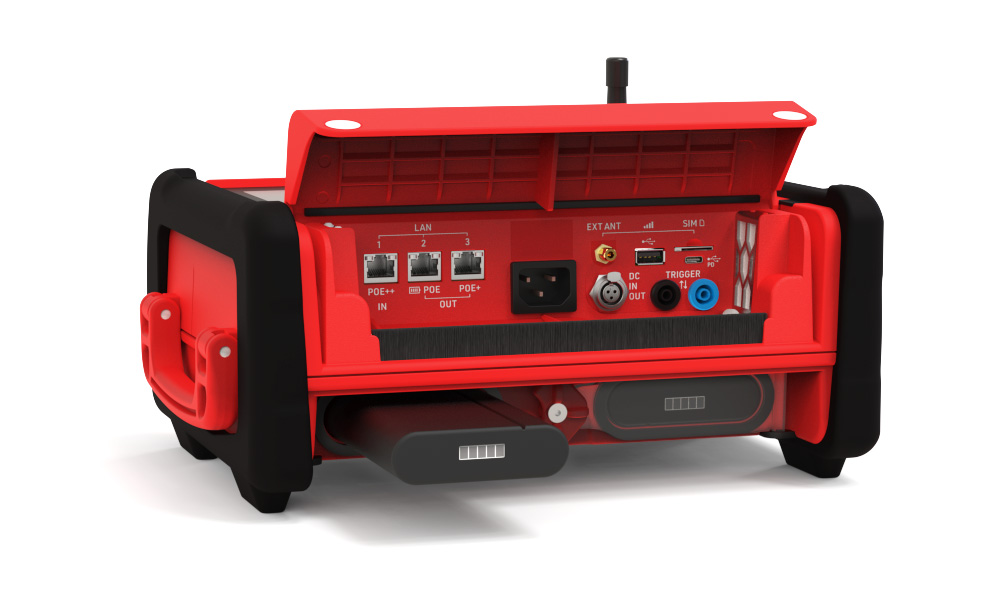

The protective flap will always fall down automatically, close with integrated magnets and push all cables into the broom. Thereby, all connector ports are protected from rain, mud and splashing water.

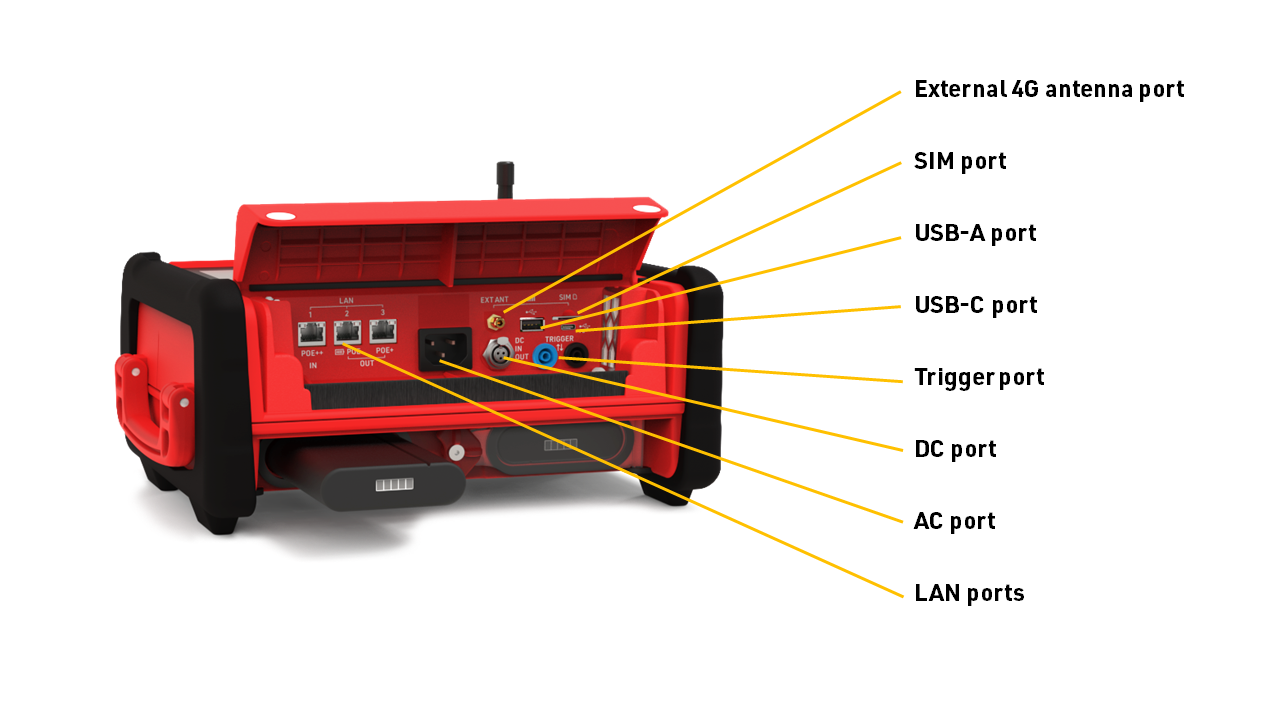

Ubidium offers more connectivity options than any timing system on the market. This includes POE, USB-C, AC and DC, and a SIM slot. An additional SIM card is installed inside the system.
Moisture and heat are blown out of the system through the ventilation grille. This enables operation in extreme conditions and conserves the electronic components.
The bumpers made of durable rubber protect against impacts, ensure a stable stand and make the systems stackable. They can be removed; however we recommend leaving them on.
The batteries can be hot swapped during timing. The transparent battery cover makes it possible to read the charging status at any time. The batteries can be charged internally.
The broom ensures that no water gets to the connectors from the outside, even when all cables are connected.

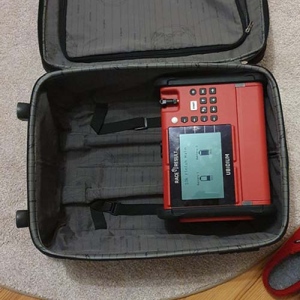

The handle makes it easy to carry the system over long distances. With two batteries inserted, Ubidium weighs only 4.1 kg.

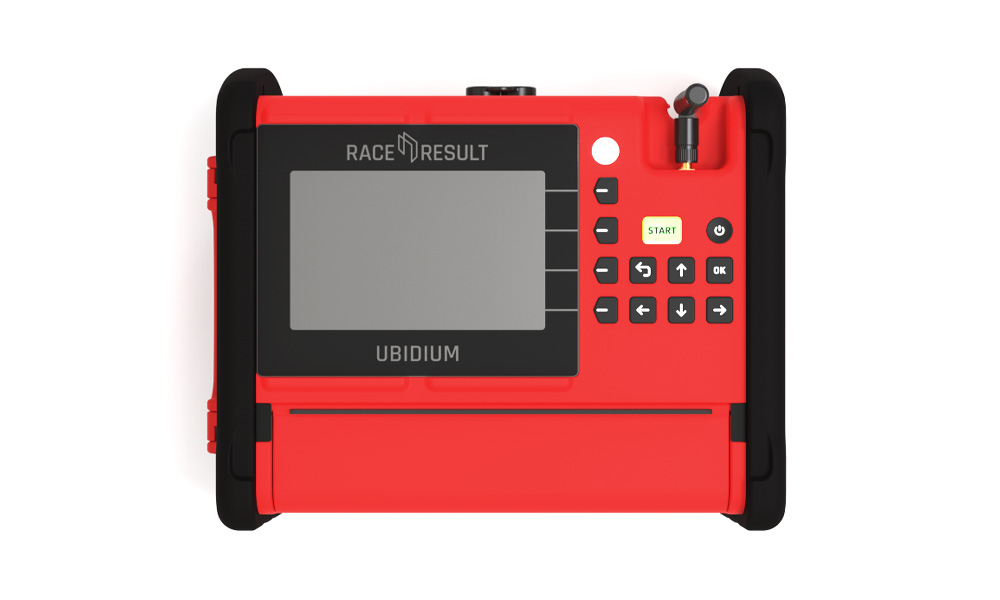

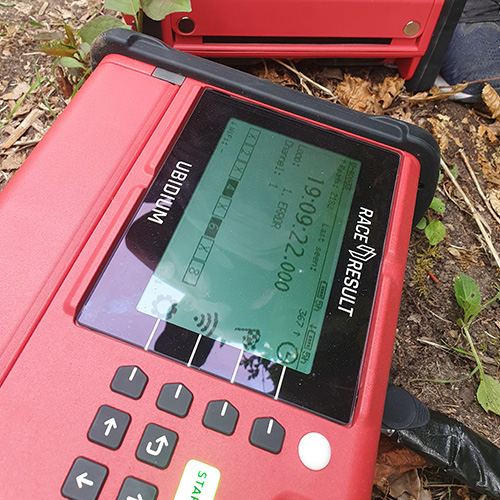

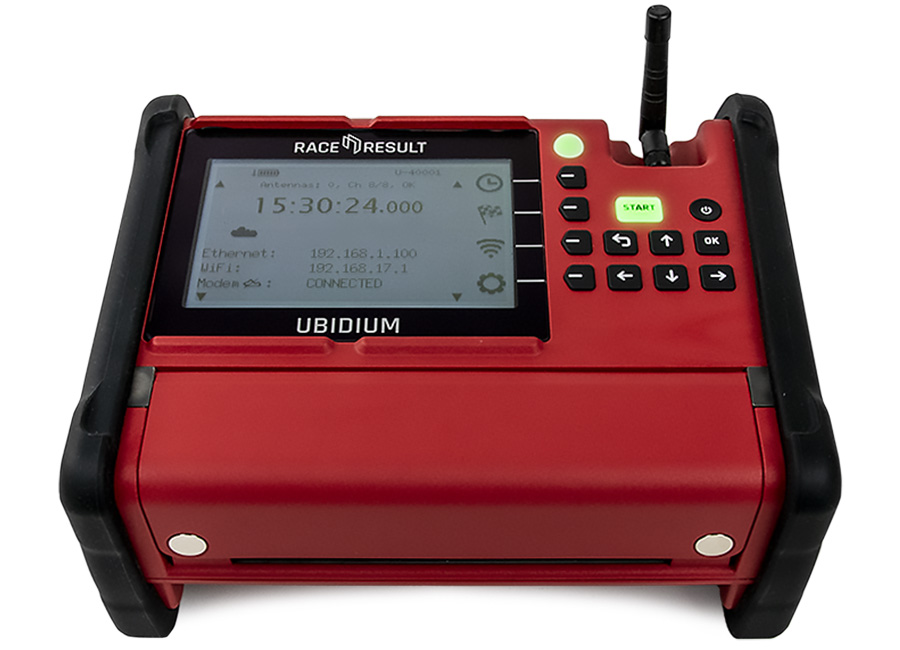

The 6.2″ display features an adjustable backlight with customizable background color. Thanks to its high contrast, it remains legible even in the brightest sunlight. It is covered with an extremely robust glass.
With the help of the clearly visible status LED, you can quickly see whether the system is running properly (green) or whether it requires operation (red).
All buttons have a pleasant pressure point and are easy to use even with gloves. Like the entire surface, they are waterproof.
The active timing antenna is used to receive data from Active Transponders and Loop Boxes. Please put it upright during your event.

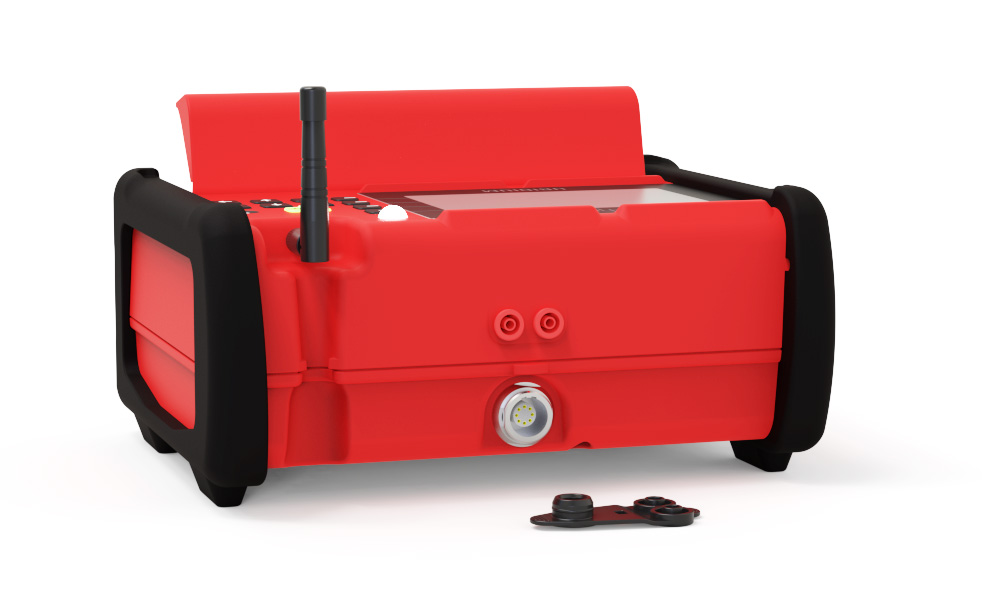

Active loop plug: Connect the banana plugs of your loop cable into the device and directly start timing with active transponders. No additional device needed!
Expansion port to plug in the Y-Bridge Cable of the Foldable Ground Antenna. The cable serves for both, power supply of the antenna and data transmission.
A port cover made from durable rubber material protects the rear connectors from moisture, dust and impacts.

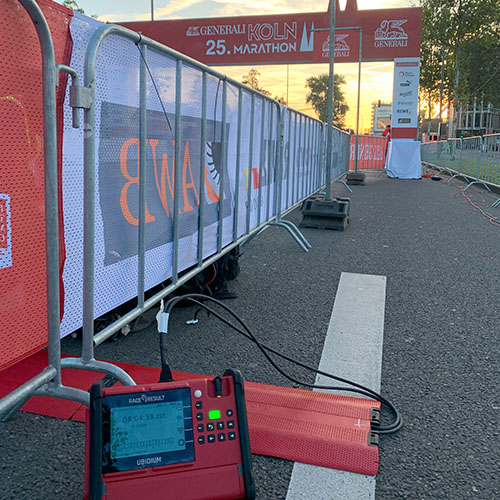

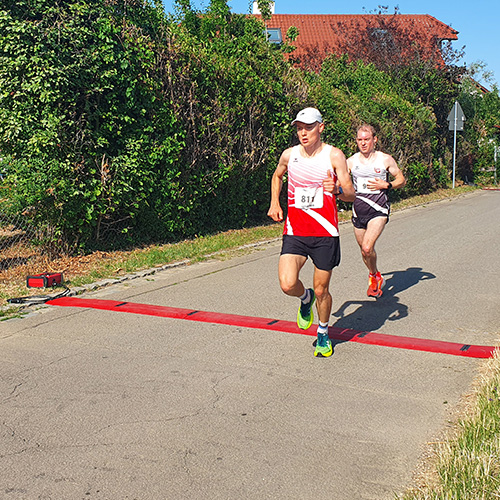

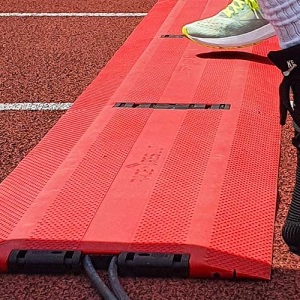

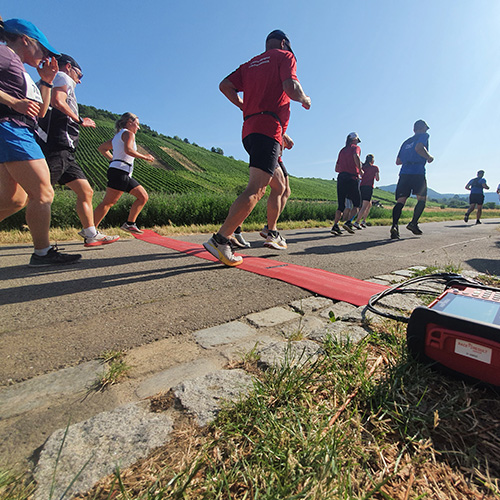

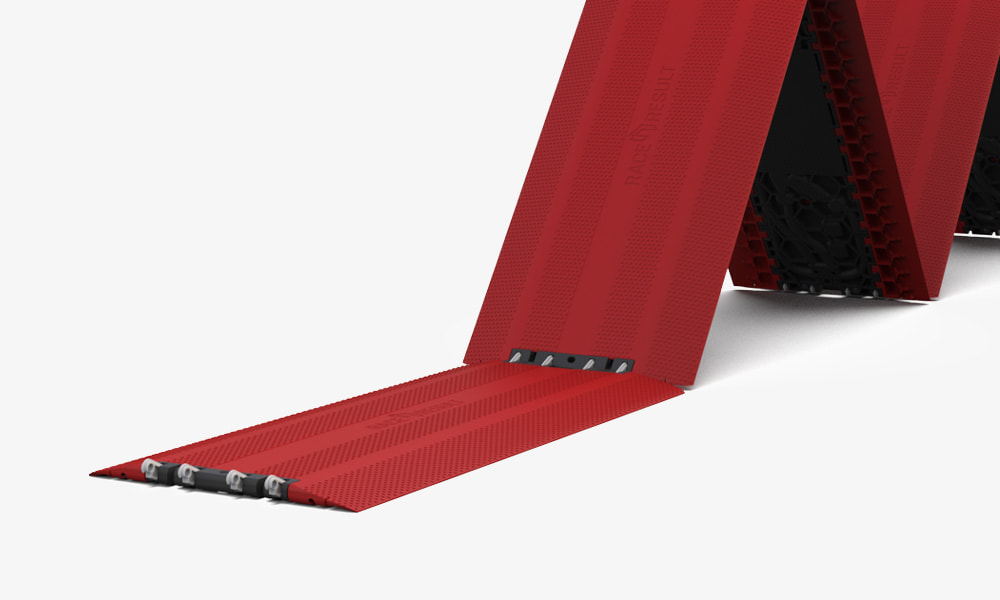

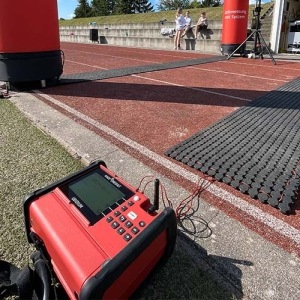

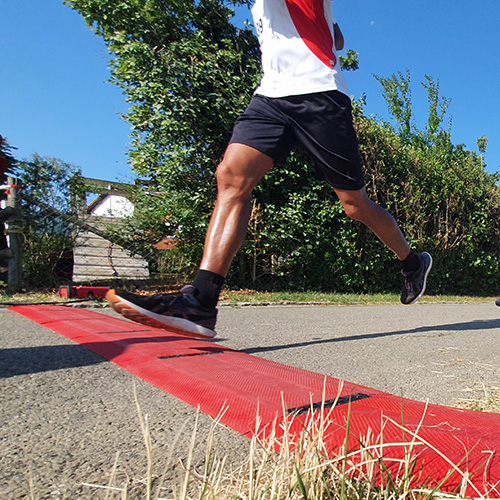

The new foldable ground antenna delivers unprecedented flexibility and the highest detection rates.
Each element contains a specially developed RACE RESULT UHF reader. The mat connects directly to Ubidium. It can be adjusted in length as desired, up to 23 meters per system (30 segments)!
Available from 2024.
Plug and Go

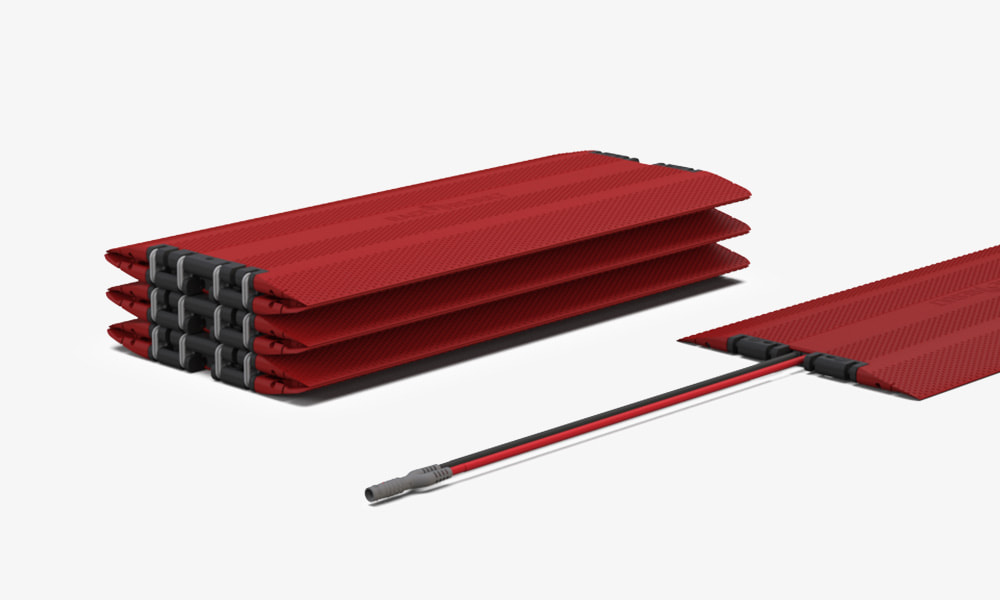

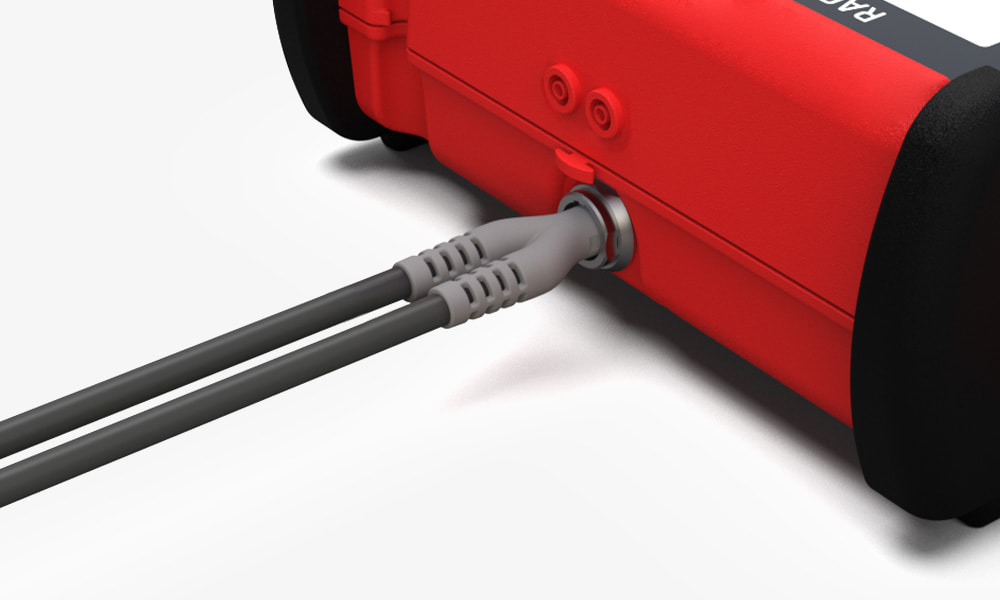

The mat connects directly to Ubidium with a single connector, no additional device required. For reliability, two independent, robust cables lead to the first antenna segment and form two separate strings throughout the whole mat.

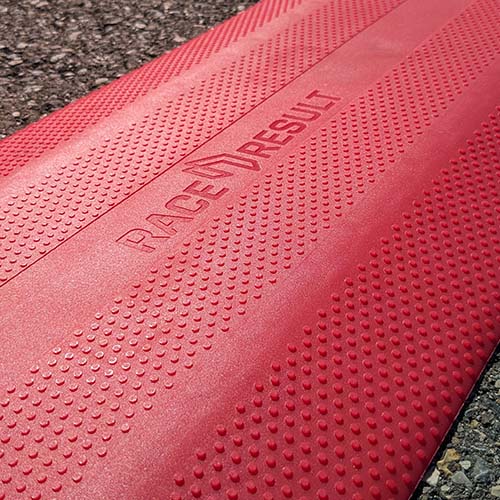

Improved Shaping, Less Weight

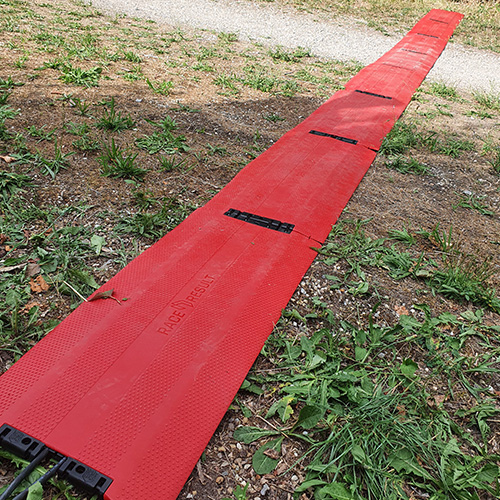

The new design gives the mat an even better profile on the road and flatter edges allow for a more comfortable ride. At 77 cm, the segments are longer than before, in the standard 4.6 meter configuration (6 segments), the mat weight is just 21 kg, 20% less than our previous ground antenna.
Up to 23 m Mat Length

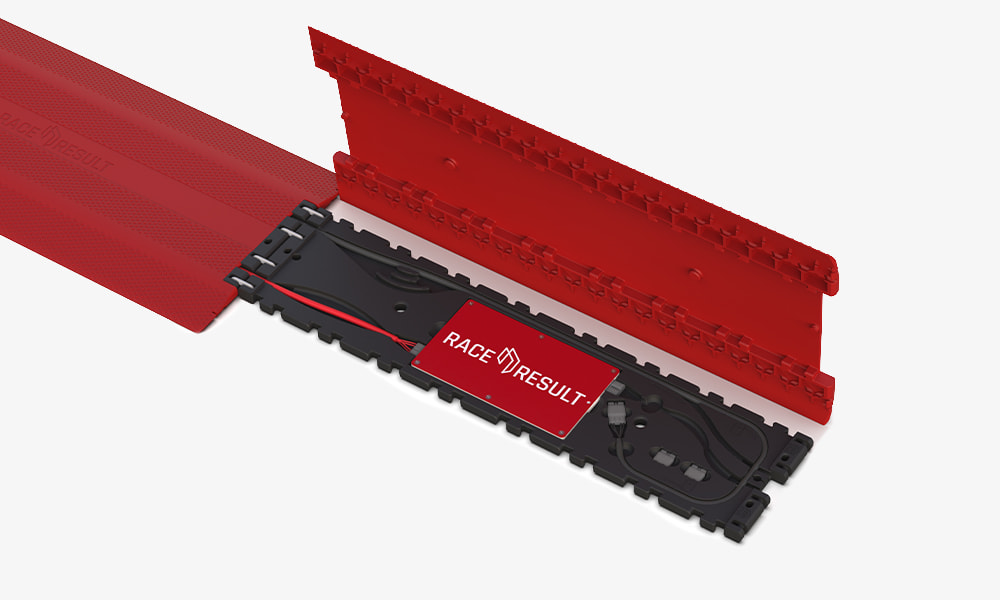

As you are not limited by the 8 ports of conventional UHF readers you can now create up to 23 m long timing mats. Each mat segment contains its own integrated reader and antenna, specifically designed by RACE RESULT for sports timing purposes. It requires less power than standard UHF readers, therefore increasing system battery life. It also allows synchronized reading with multiple elements at the same time, significantly increasing read rates and timing precision.

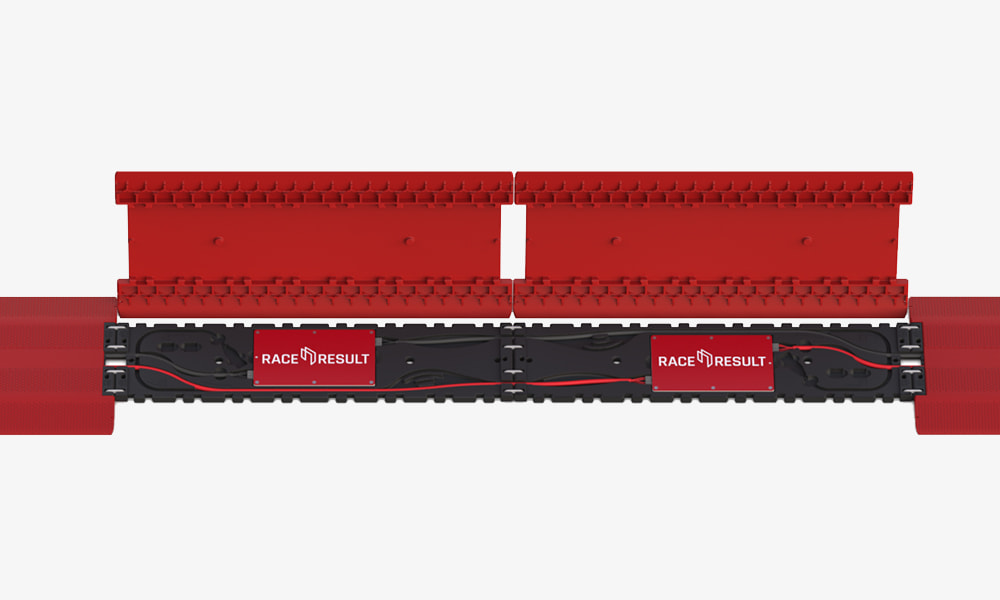

Every reader element is connected to the reader 2 mats earlier, creating two separate data lines in an A-B-A-B scheme. A defective element does not block later segments from functioning, and even if one complete strand should fail, timing remains functional.

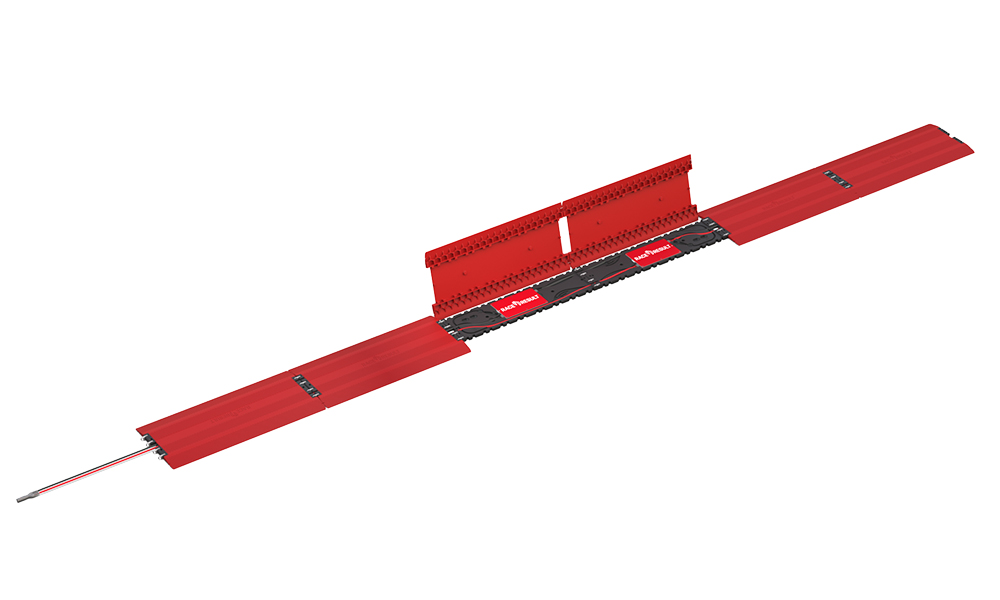

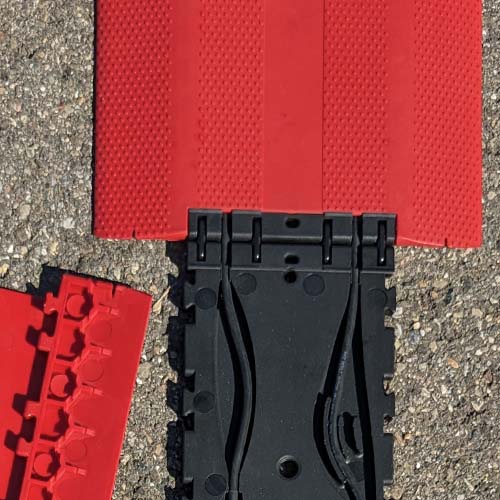

Easy Length Adaption
You only need to open one antenna segment on either side of the joint to split the mat. The cables for each segment can stay inside the mat at any time using the inner storage channel. The mat can be extended/shortened by pairs of two segments, resulting in widths between 1.5 m (2 segments) and 23 m (30 segments).
|#1 :: Design & Features Overview|
|#2 :: Connectors|
|#3 :: Batteries & Charging|
|#4 :: Display & Menu|
|#5 :: Wi-Fi Connection|
|#6 :: Timing an Event|
