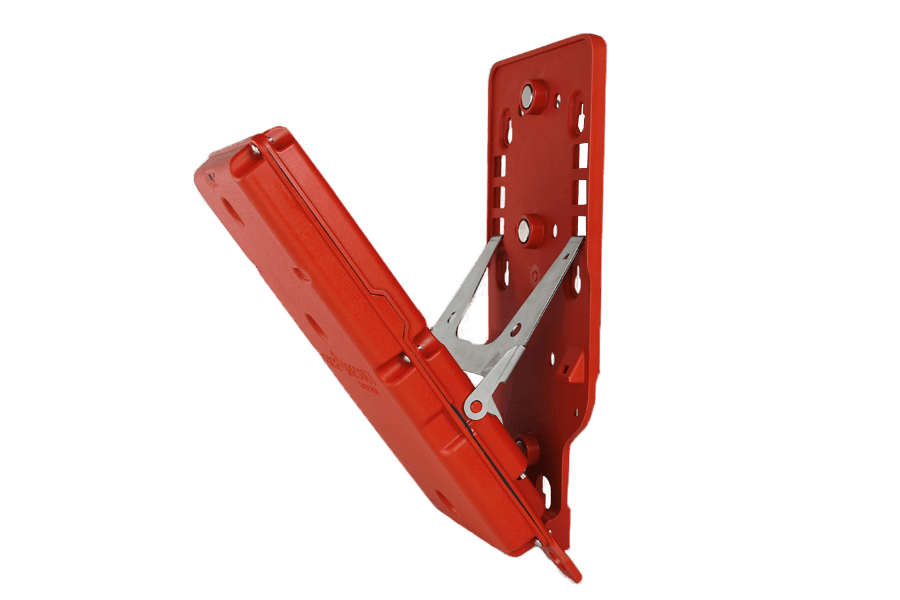

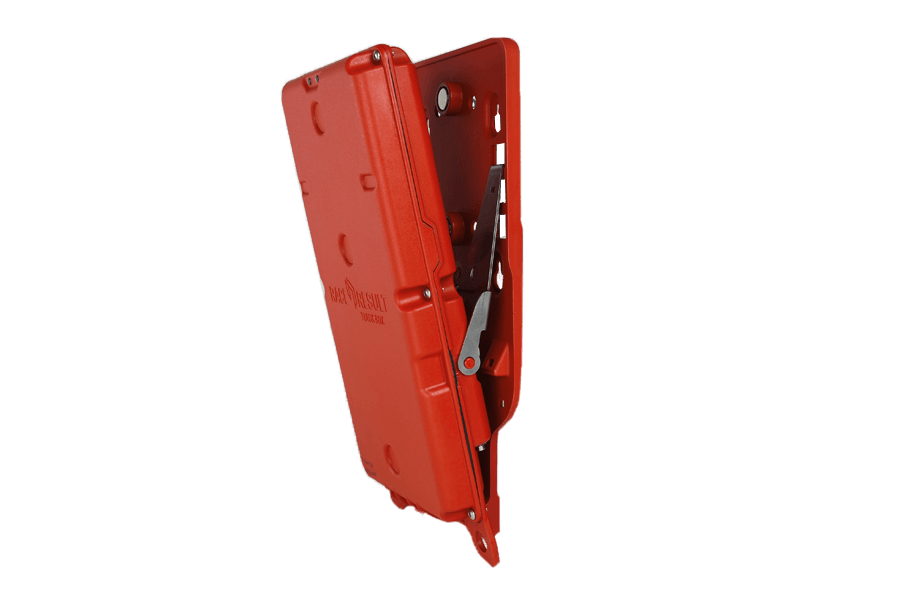

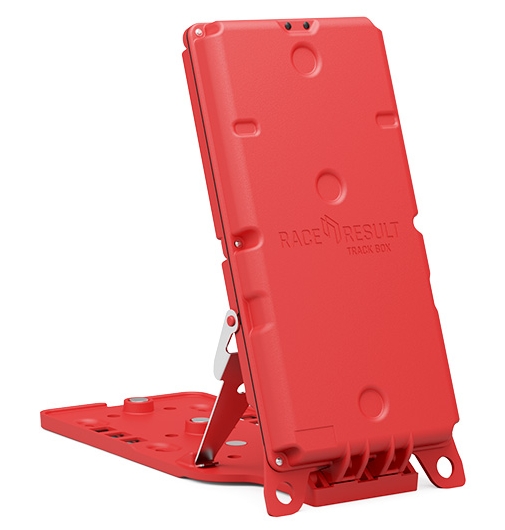

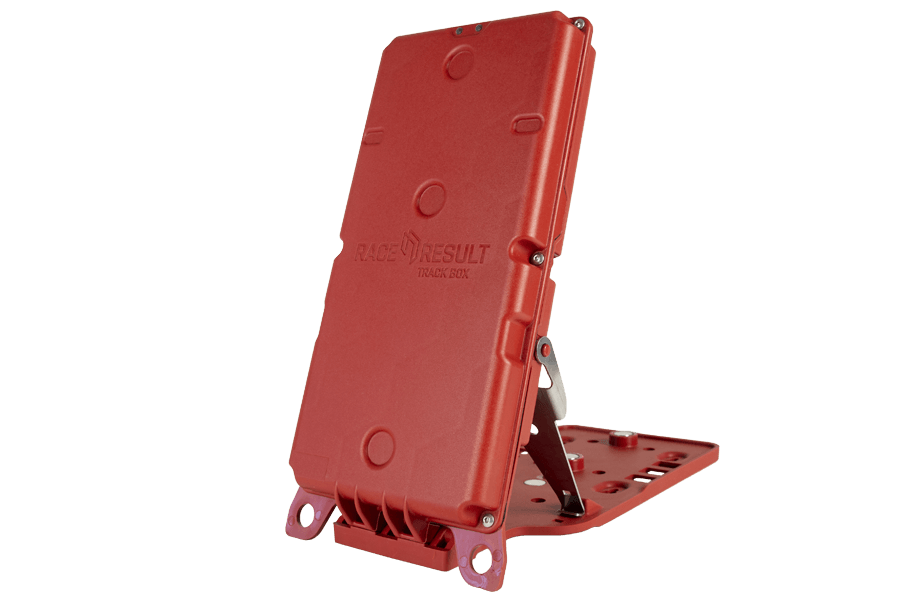

The Track Box Passive allows UHF transponder timing with only one small device. The hands-free solution is easy to carry, super fast in setup and managed remotely. With UHF reader, GPS and battery integrated, it is the ideal device for split points, remote timing locations and advanced race visualization.
With its integrated UHF reader, GPS and battery integrated, this is the ideal device for split points, remote timing locations and advanced race visualization. *
Self-sufficient device
The TrackBox Passive is a complete timing sytsem. It can even be connected to a solar panel for permanent installations.
Hands-free solution
Being pre-configured, the device is activated with one click of a button click and now runs autonomously. It needs no further operation by a helper to send detection data for 10-18 hours.
Unmatched dimensions
With a weight of only 1.7kg/3.7lbs, the box can be easily carried to remote locations. Automatic standby mode lets the box preserve energy during the night.
Remote control
Main functionalities can be configured and managed via an online interface.
* The necessary SIM cards are not included in the purchase.

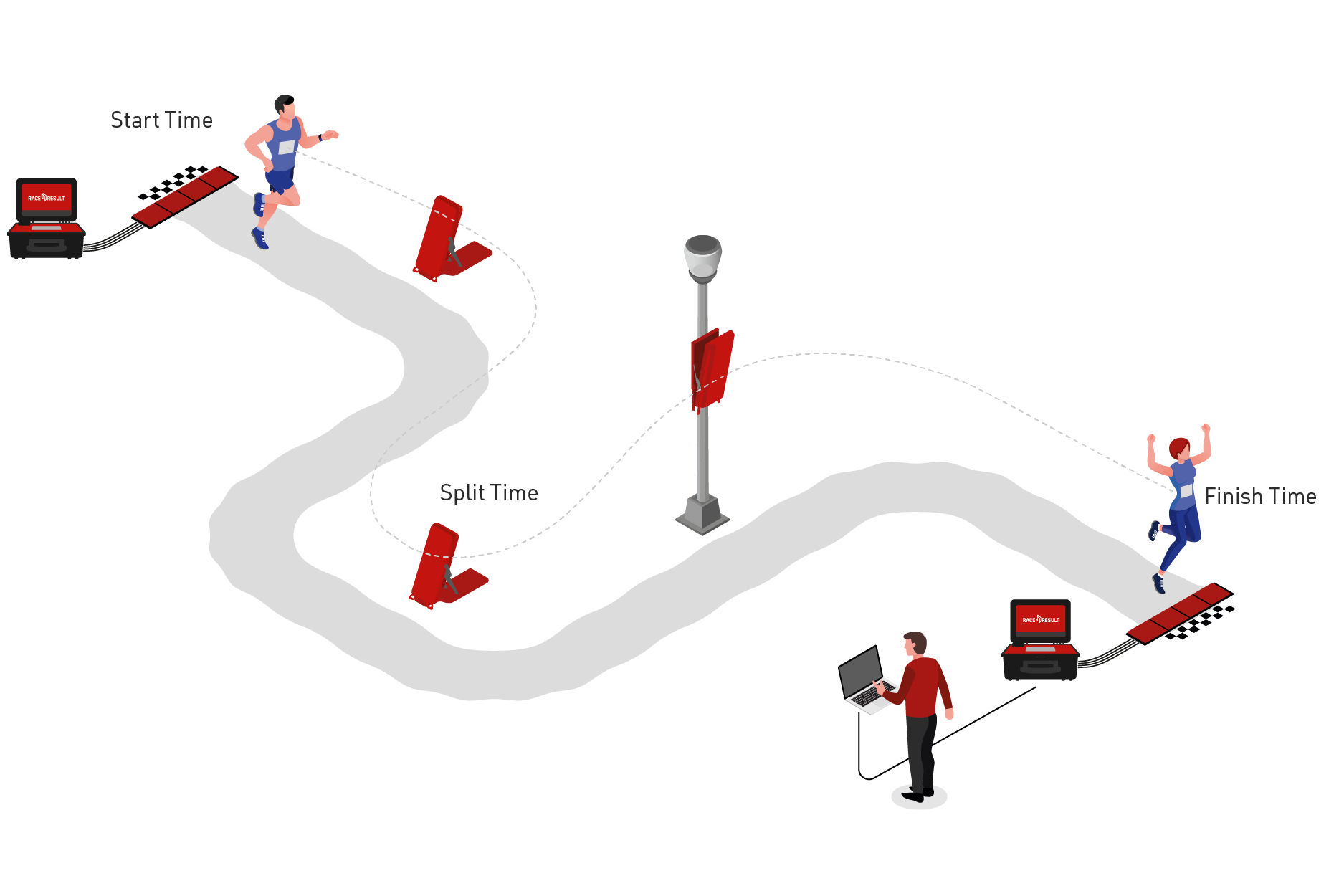

The Track Box Passive is set up along the course where the density of participants is not too high. Ideally, the device is installed perpendicular (90 degrees) to the direction of travel.
With the optimal setup and transponders worn correctly, you can expect >99% detections within 4 meters range. Transponders up to 25 meters may be detected, but with reduced read rates. Please note: All UHF timing systems need a direct line of sight between transponder and receiving antenna.
The Track Box Passive combines the transponder read with the current GPS position and sends the data via SIM card to a defined server. It is seamlessly integrated into RACE RESULT 12 timing software where it is operated like a conventional timing system.
The configuration of the box is done via online interface. Some parameters can even be changed by sending an SMS to the box. Learn more about the configuration here.
The Track Box Passive is not designed to be used as timing system for start and finish lines. Wherever you require highest precision and rely on a detection, please use a ground antenna.
| Dimensions & Standards | |
|
Protection Class (Power Connector Plugged in or Closed) |
IP54 |
| Regulatory Conformity and Standards | EN60950 (safety) EN50581:2012 (RoHS) EN302208 (UHF RFID)* EN301489 (2.4GHz)* FCC Part 15.247 (UHF RFID)* FCC Part 15 (2.4GHz)* ARIB-STD-T106 (UHF RFID)* |
| Regulatory Regions |
ETSI_LOW ETSI_HIGH FCC CANADA JAPAN AUSTRALIA CHINA |
|
Versions** |
1) 866MHz / ETSI LOW 2) 915MHz / FCC 3) 915MHz / ETSI HIGH, CANADA, AUSTRALIA, CHINA, JAPAN |
| Temperature Range | -20°C to 50°C |
| Dimensions / Weight |
335mm x 160mm x 55mm 1.7Kg |
| *Pending **UHF operates globally on different frequencies (e.g. Europe 865 - 868 MHz, USA 902-968 MHz, AUS 920-925 MHz) with different detailed regulatory requirements. That is why RACE RESULT provides different versions of the system for different regulatory areas. When operating the passive part of the system in another country, make sure it complies with local regulation. |
|
| Power & Battery | |
|
Battery |
3 x 4000mAh 3.7v Li-Po |
| Battery Life** |
12-18h (UHF reader on - blue LED on) 10 days (Standby) |
|
Charging Time (0% - 90%) |
6h (UHF reader off - blue LED off) 10h (UHF reader on - blue LED on) |
| Charging Temperature | 0°C - 40°C |
| Power Consumption |
4W (UHF reader on & battery full) 10W (battery charging) |
| DC Power Supply |
12v - 15v, 800mA (battery charging) 10.8v PB battery undervoltage protection |
| AC Power Supply | 100v - 230v, 50/60Hz |
| Solar Power Supply |
5v - 25v (4W/6W/8W/10W) recommended - 30W - 50W "12v" panel DC > 17v enables solar mode |
| **Dependent on volume of data transmitted and temperature | |
| Detections & Passings | |
|
Memory |
40,000 passings (not persistent) |
| Timing Resolution | 1/10th second |
| Timing Accuracy |
Up to 200ms dependent on speed and distance between box and transponder |
|
Detection Rate*** (With clear line of sight to transponders at 5x transponders per second = 300x per minute) |
>99% within 4m of a single box >90% within 8m of a single box >99% between 2 boxes with 8m distance |
| Max Speed |
100km/h = 60mph (single transponder in read zone) |
| Max Simultaneous Transponders | 40x transponder in read zone |
| Max Theoretical Throughput | 300x transponders per minute |
| RF Characteristics | |||||||||
|
2.4GHz Channel Frequencies (Worldwide compliance) |
|
||||||||
| 2.4GHz TX Power | 3.5dBm | ||||||||
| 2.4GHz Range | 50m - 150m | ||||||||
| UHF Bands |
ETSI LOW: 865.7 / 866.3 / 866.9 / 867.5 MHz ETSI HIGH / FCC/ CANADA / AUSTRALIA / CHINA / JAPAN: 900 - 930MHz (bands dependent on regional regulations) |
||||||||
| UHF TX Power |
36dBm EIRP typical (up to 39dBm EIRP, dependent on regional regulations) |
||||||||
| UHF RX Sensitivity | -85dBm | ||||||||
| Integrated UHF Antenna |
6dBi gain 90° beamwidth |
||||||||
| Connectivity & GPS | |
|
Internal GPS |
Qualcomm gpsOne Gen8c with GPS, GLONASS, BeiDou/Compass, Galileo and QZSS |
|
29 Band 4G / LTE / 3G / 2G Module Worldwide Coverage |
FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B26 / B28 TDD:B38 / B39 / B40/ B41 WCDMA: B1 / B2 / B4/ B5 / B8 / B6 / B19 GSM: B2 / B3 / B5 / B8 |
| SIM Card | 2FF standard / mini-size |
| Antennas | internal |
| Package Contents | |

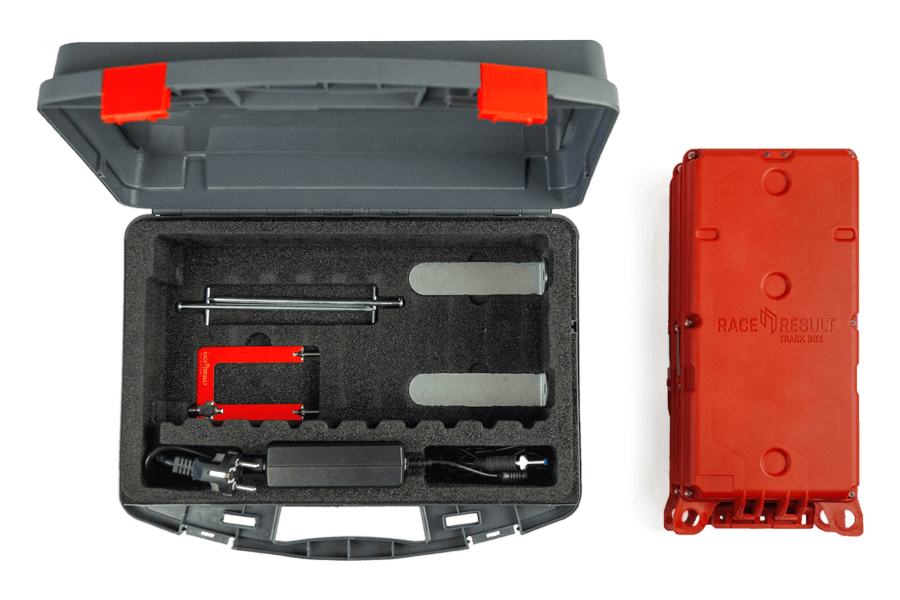

| Includes |
foam-padded case with shoulder strap 2 x Track Boxes 2 x tripod mounts 2 x stakes 1 x double charge adapter 1 x 12v AC adapter 1 x mains power lead |
| Dimensions / Weight |
390mm x 300mm x 135mm 5Kg |
Helpful Articles in our Knowledge Base:
Optimal setup and positioning →
Track Box Configuration →
Battery, Charging and Solar Panel Operation →
We embedded a video from a third party (www.youtube.com) here.
By showing the external content you accept YouTube's terms and conditions.
Track Box Passive
Complete Beginner's Guide
Track Box Passive
Connecting Solar Panels
Track Box Passive
Introduction

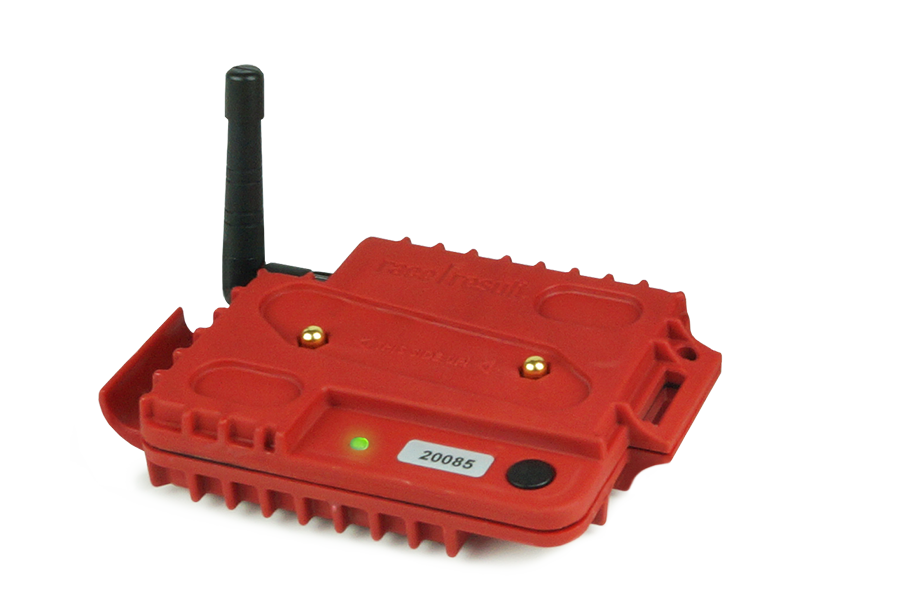

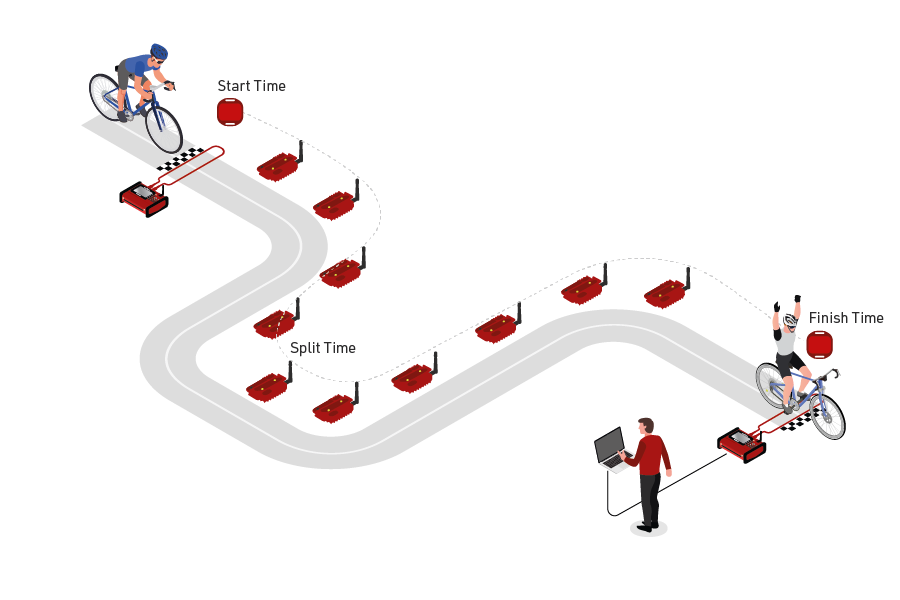

With the Track Box, you can provide tracking and timing with the same transponder. Track Boxes placed along the course or on race vehicles receive pings from all tracking-enabled transponders within a 50 m radius and transmit the data live online. You can then use this data to produce live tracking visualisation, and to publish an unprecedented amount of splits.
With Tracking Mode activated, the ActivePro V3 sends out pings. RACE RESULT Track Boxes receive these signals and transmit them via mobile network to the timing server. This allows for better athlete tracking without the need for additional tracking devices. The Track Box is also the easiest way to set up split points in remote places.
Inserting SIM Card, placement along the course, LED codes
| Safety & conditions Track Box | |
| Protection class |
IP64 -waterproof- |
| Temperature | -20°C to 70°C |
| Dimensions / weight | 165 x 102 x 32 mm / 400 g |
| Connectivity | |
| Internal GPS | Qualcomm gpsOne Gen8 with GLONASS |
| Internal 3G | 7 band 3G + quadband GPRSStandard SIM-Card |
| Battery | |
| Battery type | LiPo, 4,000 mAh, 3.7 V |
| Charge current | 230mA at 15V (full in 5h) 150mA at 12V (full in 10h) |
| Battery life | Moving: 1 day Stationary: 3-5 days |
| 2.4 GHz RF specification | |
| Transponder 2.4GHz channel frequencies (worldwide compliance) | 1: 2.480 MHz 2: 2.405 MHz 3: 2.425 MHz 4: 2.475 MHz 5: 2.415 MHz 6: 2.460 MHz 7: 2.435 MHz 8: 2.450 MHz |
| 2.4 GHz TX Power | 3,5 dBm |
| Internal Data Buffer | 10,000 trackping records |
| Read Range | 50 m - 150 m |
| 10 Track Boxes Pack | |
| Content | Foam-padded suitcase with shoulder strap 10 Track Boxes Track Box charge adapter 15 V AC adaptor with universal power inlet Mains power lead |
| Dimensions / weight | 390 x 300 x 135 mm / 5.5 kg |
Helpful Articles in our Knowledge Base:
How Track Boxes work →
Deployment of Track Boxes →
Transponder Tracking Activation →
