Active Transponder

Three options
The ActivePro and the MotorKart are high-end transponders with a 3D activation antenna, very high precision and a revolutionary tracking feature. The ActiveBasic is the cost-efficient alternative with 1D activation and less precision.

Flexibility
All transponders can be used in the same race (for example ActivePro for elite riders, ActiveBasic for amateurs).

3D activation antenna
The 3D activation antenna of the ActivePro ensures reliable detection in any orientation.

Precision
Because of the 3D antenna, the ActivePro offers a true 1/100th second precision

Battery lifetime
The ActivePro and MotorKart transponders can be set to deep sleep mode, which reduces the energy consumption and increases battery lifetime.

Technical Specifications

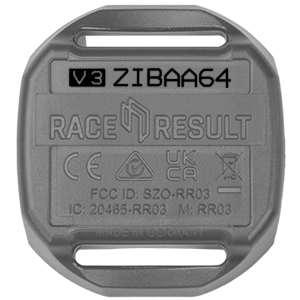

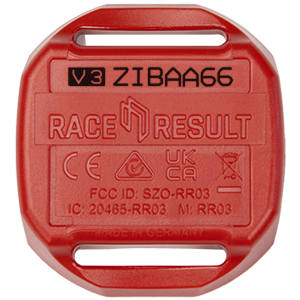

	Active Basic	ActivePro V2	MotorKart
Loop detection antenna	1D activation antenna	3D activation antenna – detects equally in any orientation
Detection speed	75 km/h (45 mph)	150 km/h (90 mph)	up to 250 km/h (155 mph)
Timing accuracy	2/10th second	1/100th second ¹⁾	4/1,000th second ¹⁾
Precision sweet spot	at 30-60 km/h		at 60-90 km/h
Reaction time	250 ms		125 ms
Passings storage	no	64 passings up to 24 hours time drift of ± 70 ms per hour (20 ppm)	128 passings up to 24 hours time drift of ± 70 ms per hour (20 ppm)
Tracking mode	no	tracking rate 1 time per second	tracking rate 2 times per second
Deep sleep mode	no	reduces power consumption by 40%	reduces power consumption by 70%
Prewarn before passing for fast identification	no	yes	yes Prewarn acknowledgement
Expected battery life ²⁾	12 years & 300,000 passings	7 years & 200,000 passings	4 years & 300,000 passings
Guaranteed battery life ^{3) 4) 5)}	7 years & 150,000 passings	5 years & 100,000 passings	3 years & 200,000 passings
Tracking lifetime	-	2,000 hours	1,200 hours
Battery indicator	temperature compensated battery status data in passing
Dimensions	36 x 40 x 9 mm
Weight	16.8 g
Housing	IP69 TPE molded case sealed with PU compound 100% salt water proof
Temperature ⁵⁾	-25°C to 70°C
Shock Resistance	>1,000 G
¹⁾ At 30% loop power & 30 cm wide loop ²⁾ Expectation based on usage without Tracking ³⁾ Whichever comes first ⁴⁾ Battery consumption is cumulative, e.g. 50,000 passings & 1,000 Tracking hours exploit the guarantee ⁵⁾ Battery Warranty limited to temperatures above -10°C

Active Transponder Tray

Active Transponder Tray
Dimensions	522 x 297 x 12 mm
Weight	approx. 1 kg (including 50 transponders)
Material	4 mm rugged PE (UV stabilized)
Features	Stackable, with numbering 1-50 / 51-100

Active Chip Holder

The Active Chip Holder is included with every Active Motor Transponder and also sold seperately in the SHOP.

Active Chip Holder
Dimensions	50 x 58 x 20 mm
Weight	14 g (incl. 3 O-rings)
Material	High-impact resistant plastic
Compatible with	Active Basic, Active Pro, Active Motor
Contents	Active Chip Holder, 3 O-rings
Feature	Can be mounted on plain surfaces or tubes
Note: To guarantee full performance, the Active Motor transponder needs at least 5-10 mm distance to any metal/carbon part.

×

Management Box

Features

Activate and deactivate tracking

Manage Track Boxes

Set transponders to deep sleep mode*

Keep track of transponder battery status

Generate chip files

Scan trays to check

USB connection

* In Deep Sleep Mode, the ActivePro and MotorKart transponders need 40% less energy, which can increase their lifetime by up to 30%.

Technical Specifications

2.4 GHz RF & loop specification
Transponder 2.4 GHz channel frequencies (worldwide compliance)	1: 2.480 MHz / 2.405 MHz 2: 2.405 MHz / 2.470 MHz 3: 2.425 MHz / 2.465 MHz 4: 2.475 MHz / 2.440 MHz 5: 2.415 MHz / 2.445 MHz 6: 2.460 MHz / 2.430 MHz 7: 2.435 MHz / 2.455 MHz 8: 2.450 MHz / 2.420 MHz
2.4 GHz TX power	17.5 dBm
Loop frequency & data	125 kHz data-packet = Loop ID + channel packet rate: 150 Hz OOK-modulation, manchester encoded, 16bit anti-false-wakeup pattern
Loop power	100% = 250 mA RMS regulated peak current
Loop length	5 m - 25 m, >0.5 mm² standard 4 mm banana plugs
Internal data buffer	1,000 transponders
Read range 25% Loop power 100% Loop power	60 cm (2 ft) 2 m (6 ft)
Detection rate Read rate	100% > 250 chips/second burst for 4 seconds > 50 chips/second continuously
Battery	LiPo, 4,000 mAh, 3.7 V 12 hours
USB 1.1	500 mA

Safety & conditions Management Box
Protection class with cable / antenna screwed on	IP67 -waterproof-
Safety norm	EN60950
Regulatory conformity	CE, RoHS, FCC
Temperature	-30°C to 70°C
Dimensions / weight	27 x 66 x 117 mm / 274 g

×

Track Box

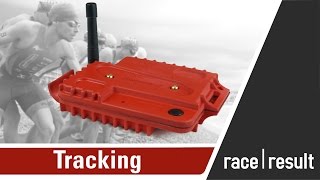

With Tracking Mode activated, the ActivePro V2 sends out a ping every second. RACE RESULT Track Boxes receive these signals and transmit them via mobile network to the timing server. This allows for better athlete tracking without the need for additional tracking devices. The Track Box is also the easiest way to set up split points in remote places.

Features

Receive track pings from Active Transponders in a 50 m radius

Upload GPS tracking data live online

Up to 5 days battery life

Built-in magnets for easy mounting

Practical stack charging

Technical Specifications

Safety & conditions Track Box
Protection class	IP64 -waterproof-
Safety norm	EN60950
Temperature	-20°C to 70°C
Dimensions / weight	165 x 102 x 32 mm / 400 g
Connectivity
Internal GPS	Qualcomm gpsOne Gen8 with GLONASS
Internal 3G	7 band 3G + quadband GPRS Standard SIM-Card

Battery
Battery type	LiPo, 4,000 mAh, 3.7 V
Charge current	230mA at 15V (full in 5h) 150mA at 12V (full in 10h)
Battery life	Moving: 1 day Stationary: 3-5 days
2.4 GHz RF specification
Transponder 2.4GHz channel frequencies (worldwide compliance)	1: 2.480 MHz 2: 2.405 MHz 3: 2.425 MHz 4: 2.475 MHz 5: 2.415 MHz 6: 2.460 MHz 7: 2.435 MHz 8: 2.450 MHz
2.4 GHz TX Power	3,5 dBm
Internal Data Buffer	10,000 trackping records
Read Range	50 m - 150 m

10 Track Boxes Pack
Content	Foam-padded suitcase with shoulder strap 10 Track Boxes Track Box charge adapter 15 V AC adaptor with universal power inlet Mains power lead
Dimensions / weight	390 x 300 x 135 mm / 5.5 kg

×

USB Timing Box

The USB Timing Box enables you to setup your timing line in a split second!
Directly connected to a computer, the USB Timing Box does not require a decoder.
The USB Timing Box is used best to time sporting events, to scan tags at race pack pick-up, or for just about any other application. The open-source software of the USB Box allows you to develop any solution that may have nothing to do with sports timing.

Features

Wireless reception of split times from a Loop Box

Highest clock stability on the market:
0.28 ppm

100 % detection rate

Open Software Development Kit

1000 detection internal memory

Internal backup battery for 12 h

Compatible with all race result active devices

1/1000th Data Resolution, Accuracy depending on Transponder Type

Works with low end computers

Loop power can be set by user

Technical Specifications

2.4 GHz RF & loop specification
Transponder 2.4 GHz channel frequencies main / backup (worldwide compliance)	1: 2.480 MHz / 2.405 MHz 2: 2.405 MHz / 2.470 MHz 3: 2.425 MHz / 2.465 MHz 4: 2.475 MHz / 2.440 MHz 5: 2.415 MHz / 2.445 MHz 6: 2.460 MHz / 2.430 MHz 7: 2.435 MHz / 2.455 MHz 8: 2.450 MHz / 2.420 MHz
2.4 GHz TX power	17.5 dBm
Loop frequency & data	125 kHz data-packet = Loop ID + channel packet rate: 150 Hz OOK-modulation, manchester encoded, 16bit anti-false-wakeup pattern
Loop power	100% = 250 mA RMS regulated peak current
Loop length	5 m - 25 m, >0.5 mm² standard 4 mm banana plugs
Internal data buffer	1,000 transponders
Read range 25% Loop power 100% Loop power	60 cm (2 ft) 2 m (6 ft)
Detection rate Read rate	100% > 250 chips/second burst for 4 seconds > 50 chips/second continuously
Battery	LiPo, 4,000 mAh, 3.7 V 12 hours
USB 1.1	500 mA

Safety & conditions USB Timing Box
Protection class with cable / antenna screwed on	IP67 -waterproof
Safety norm	EN60950
Regulatory conformity	CE, RoHS, FCC
Temperature	30°C to 70°C
Dimensions / weight	27 x 66 x 117 mm / 266 g

×

Active Extension

Connect the Active Extension to your Decoder and plug in a wire loop to time with Active Transpondes.
Active transponders ensure highest precision, accuracy and reliability for cycling, triathlons, inline, skiing or motor sports.

Features

Unmatched precision: up to 0.004 s

Detection height: up to 2.5 m

Loop length: up to 25 m

2.4 GHz wireless interface

Detects up to 250 transponders at once

Compatible with all RACE RESULT active devices

3.5 mm jack audio output / impulse input

Switch for blink on repeated passings

Technical Specifications

2.4GHz RF & loop specification
Transponder 2.4 GHz channel frequencies main/ backup (worldwide compliance)	1: 2.480 MHz / 2.405 MHz 2: 2.405 MHz / 2.470 MHz 3: 2.425 MHz / 2.465 MHz 4: 2.475 MHz / 2.440 MHz 5: 2.415 MHz / 2.445 MHz 6: 2.460 MHz / 2.430 MHz 7: 2.435 MHz / 2.455 MHz 8: 2.450 MHz / 2.420 MHz
2.4 GHz TX power	17.5 dBm
Loop frequency & data	125 kHz Data-Packet = Loop ID + channel Packet rate: 150 Hz OOK-modulation, manchester encoded, 16 bit anti-false-wakeup pattern
Loop power	100% = 250 mA RMS regulated peak current
Loop cable & length	5 m - 25 m, >0,5 mm² standard 4 mm banana plugs
Data cable	5 m (standard), 15 m, 20 m
Read range 25% loop power 100% loop power	60 cm (2 ft) 2.5 m (8 ft)
Detection rate read rate	100% > 250 chips per second burst for 4 seconds > 50 chips per second continuously
Internal data buffer	1,000 passings
Clock stability	24/1,000th second per day 0.28 ppm TCXO calibrated to rubidium frequency standard traceable to NIST
Forewarn data delay	100 ms (from entering the loop field)
Max Passing Data Delay	250 ms (after loop center)
Repetitive Passing rate over loop	1 per second

Safety & Conditions Active Extension V2
Protection class with cable/antenna screwed on	IP67 -waterproof-
Safety norm	EN60950
Regulatory conformity	CE, RoHS, FCC
Temperature	-30°C to 70°C
Dimensions / weight	27 x 66 x 117 mm / 190g

RACE RESULT System firmware version 1.94 or higher recommended

×

Loop Box

For additional timing points you only need a stand-alone RACE RESULT Loop Box with loop cable to capture times.

Features

Easy setup:
No wiring needed between main system and split timing points

Stand-alone:
With its internal battery the Loop Box can run for 12-20 hours.

3.5 mm input-/output-plug:
Audio output or start impulse input

Repeat mode range:
up to 900 m

Small investment:
For an additional timing point you only need a Loop Box instead of a complete timing system.

Setup

Store Mode
The ActivePro V2 saves up to 64 split times in Store Mode and transmits them at the next timing system.

Repeat Mode
If the split point is within 500 meters of the main timing system, all timing data is transmitted in real-time wirelessly from the Loop Box to the Active Extension. The Repeat Mode is the smartest solution for triathlon transition zones.

Technical Specifications

Safety & conditions Loop Box
Protection class with cable / antenna screwed on	IP67 -waterproof-
Safety norm	EN60950
Regulatory conformity	CE, RoHS, FCC
Temperature	-30°C to 70°C
Dimensions / weight	27 x 66 x 117 mm / 272 g

Loop Box
Maximum repeat range	Up to 900 m with direct line of sight
Passings transmission	Up to 40/second continuously
Passing transmission delay	200 ms – compensated
Internal data buffer	1,000 passings

Power & battery
AC power supply Loop Box V2	110 V-230 V 50-60 Hz (2 A fuse)
Loop Box V2	10 V-15 V, 100 mA (at 100% loop power)
Battery	LiPo, 4,000 mAh, 3.7 V 12-20 h depending on loop power

	Setup of the RACE RESULT Active System
	Active V2 Transponders

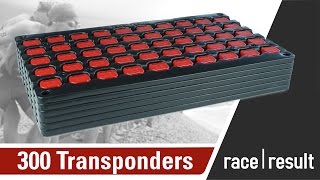

	300 Active Transponders in one shot!
	Timing Innovation: Tracking

Active System

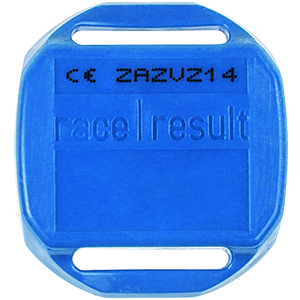

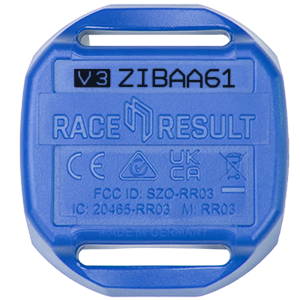

ActiveBasic Transponder

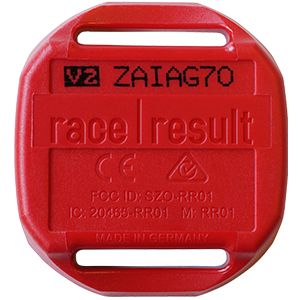

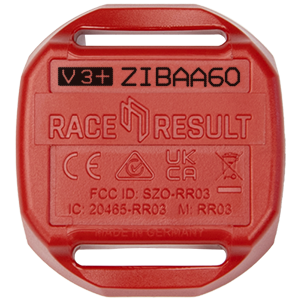

ActivePro Transponder

MotorKart Transponder

Temperature:

-25°C to +70°C

Weight:

16.8g

Dimensions:

36x40x9mm

Waterproof:

100%

Activation:

125 kHz

Back Channel:

2.4 GHz

Usage:

Worldwide

Active Extension

Loop Box

USB Timing Box

Track Box

Management Box
